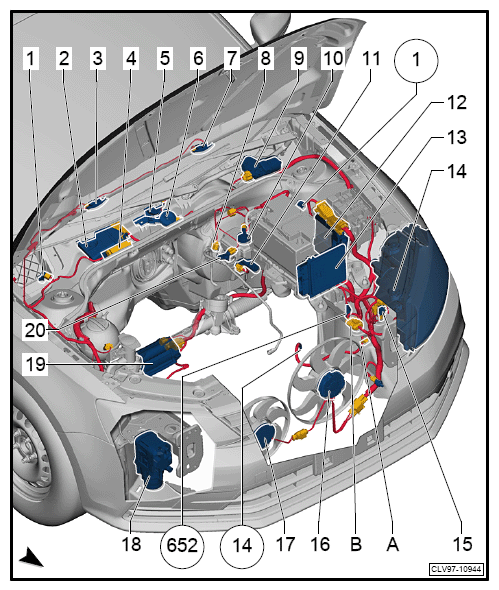

Engine Compartment, Top
- 1 - Air quality sensor -G238-
- 2 - Transmission control module -J217- depending on equipment. For alternate location see Item 13.
- 3 - Right washer nozzle heater -Z21-
- 4 - Structure borne sound control module -J869-
- 5 - Alarm horn -H12-
- 5 - Alarm system horn -H18-
- 6 - Structure-borne sound actuator -R214-
- 7 - Left washer nozzle heater -Z20-
- 8 - Vacuum sensor -G608-
- 9 - Windshield wiper motor -V-
- 10 - Brake fluid level warning switch -F34-
- 11 - Brake pedal switch -F47-
- 11 - Brake pedal switch -FX2-
- 11 - Brake lamp switch -F-
- 12 - Engine control module -J623-
- 13 - Transmission control module depending on equipment. For alternate location see Item 2.
- 14 - Left front headlamp -MX1-
- 15 - Driver front airbag crash sensor -G283-
- 16 - Coolant fan control module -J293-
- 16 - Coolant fan -V7-
- 17 - Coolant fan 2 -V177-
- 17 - Right coolant fan -V35-
- 18 - Recirculation pump -V55-, not for NAR equipped vehicles.
- 18 - Auxiliary heater control module -J364-, not for NAR equipped vehicles.
- 18 - Combustion air blower -V6-, not for NAR equipped vehicles.
- 18 - Fuel preheating element -Z66-, not for NAR equipped vehicles.
- 18 - Glow plug with flame monitoring -Q8-, not for NAR equipped vehicles.
- 19 - Steering angle sensor -G85-
- 19 - Steering torque sensor -G269-
- 19 - Power steering control module -J500-
- 19 - Electromechanical power steering motor -V187-
- 20 - Brake booster pressure sensor -G294-
- A - Double connector -T2i-
- A - 14-pin connector -T14t-
- A - 8-pin connector -T8ab-
- B - 14-pin connector -T14-
- 1 - Ground strap, battery to body
- 14 - Ground connection on transmission
- 652 - Transmission/engine ground connection
