00 General, Technical Data: Systems: Checklist

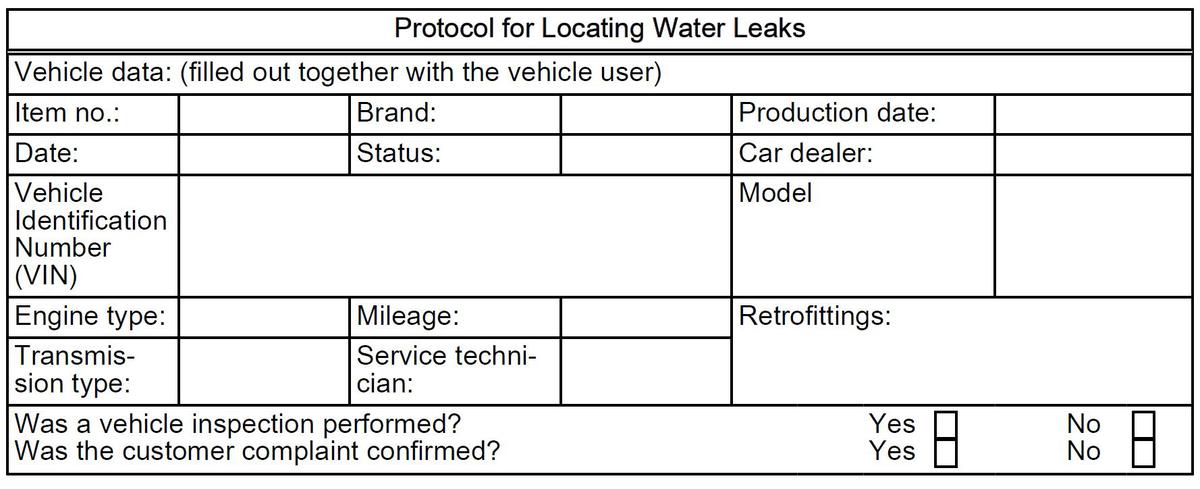

Protocol for Locating Water Leaks

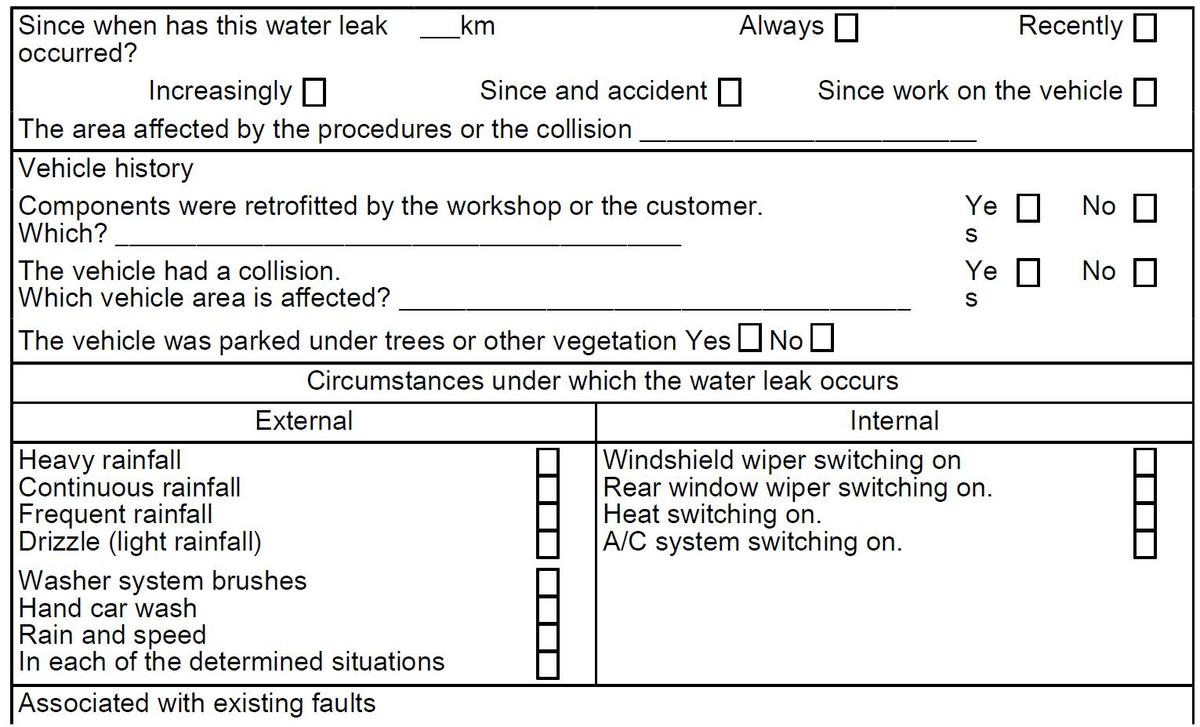

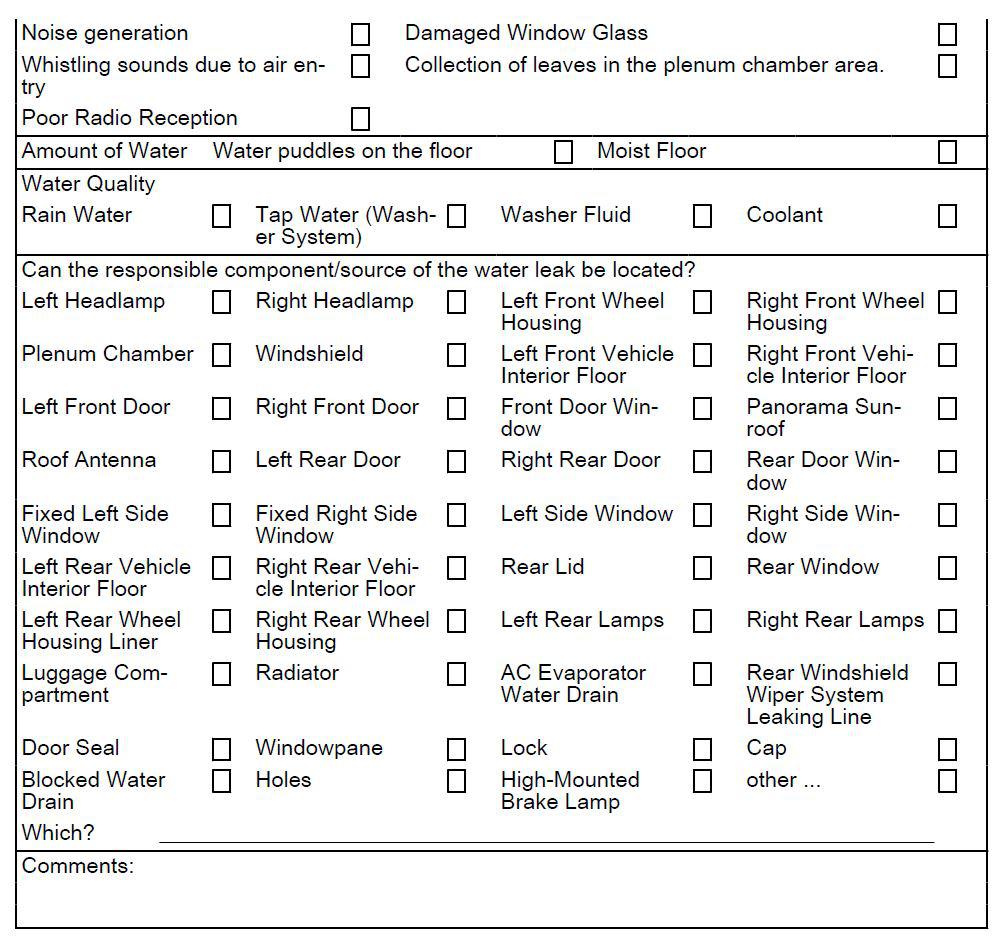

Water Leaks Checklist
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
Mark In The Illustration The Area Where The Water Is Located
.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
