Overview - Drivetrain, FWD: Notes

WARNING: This page is about a different variant/trim than selected.

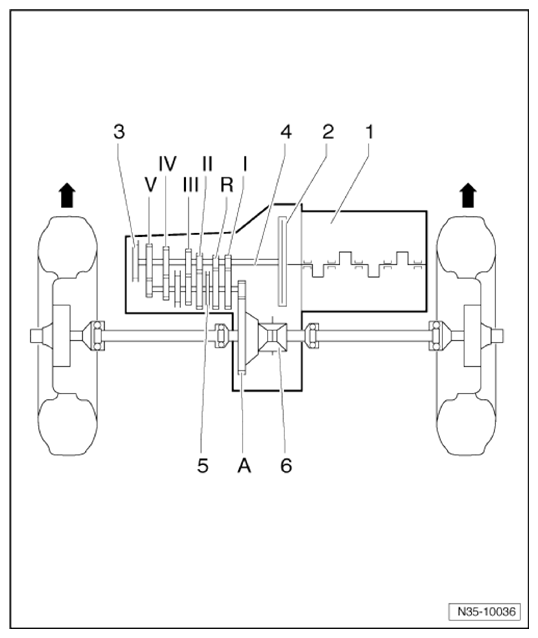

Name

-Arrows- point in the direction of travel

  1. Engine
  2. Clutch
  3. Manual Transmission
  4. Input Shaft
  5. Output Shaft
  6. Differential
G12686667Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
