Special Tools

Special tools and workshop equipment required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

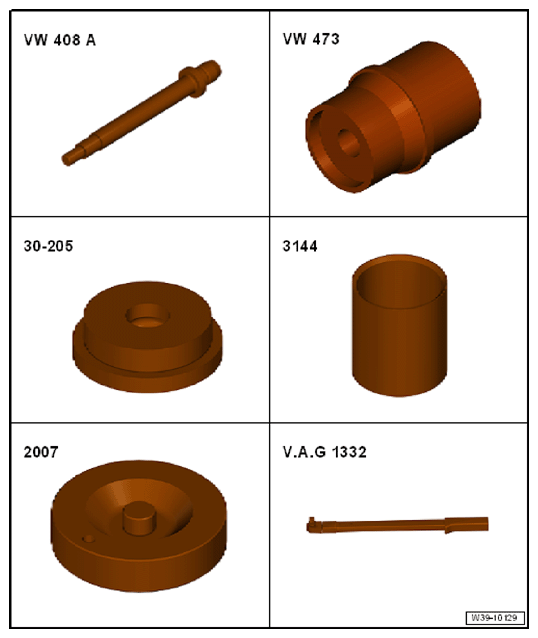

• Press Piece - Rod - VW408A-
• Press Piece - Multiple Use - VW473-
• Press Piece - Multiple Use - 30-205-
• Bearing Installer - Wheel Bearing - 3144-
• Bearing Installer - Taper Roller Bearing - 2007-
• Torque Wrench 1332 40-200Nm - VAG1332-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

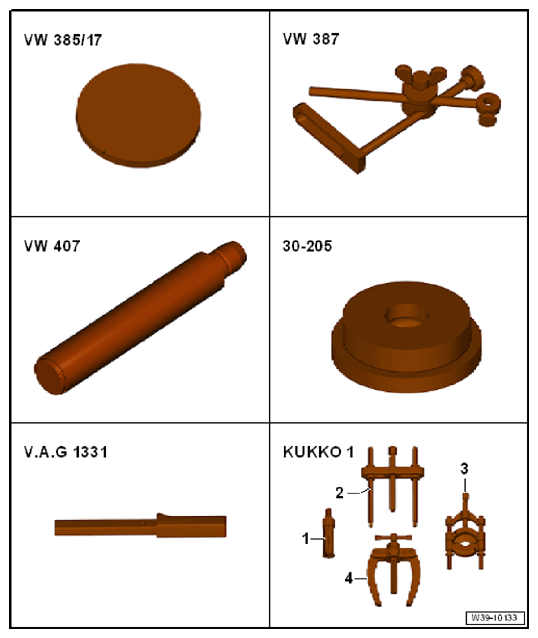

• Measuring Set - Magnetic Plate - 50mm - VW385/17-
• Dial Gauge Holder - VW387-
• Press Piece - Rod - VW407-
• Press Piece - Multiple Use - 30-205-
• Torque Wrench 1331 5-50Nm - VAG1331-
• -1- Puller - Kukko Internal - 46-56mm - 21/7-
• -4- Puller - Kukko Counterstay - 22/2-
• Dial Gauge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

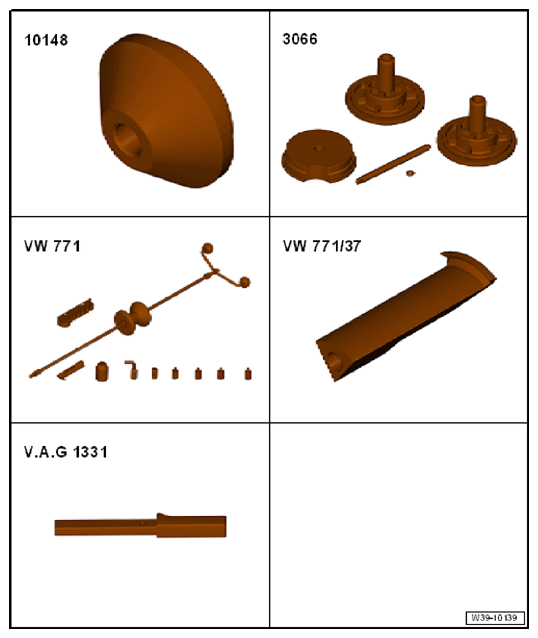

• Seal Installer - One-Piece Seal - T10148-
• Spindle from the Seal Installer - Driver Set - 3066-
• Slide Hammer Set - VW771-
• Slide Hammer Set - Hook - VW771/37-
• Torque Wrench 1331 5-50Nm - VAG1331-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

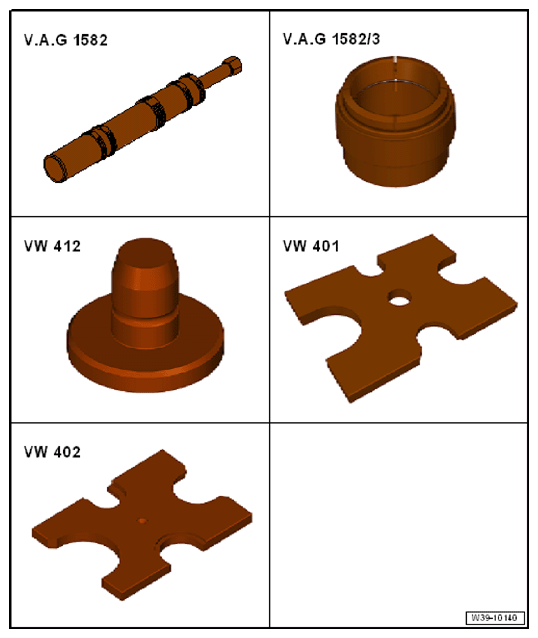

• Puller - Taper Roller Bearing - VAG1582-
• Puller - Taper Roller Bearing - Adapter 3 - VAG1582/3-
• Press Piece - Multiple Use - VW412-
• Press Plate - VW401-
• Press Plate - VW402-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

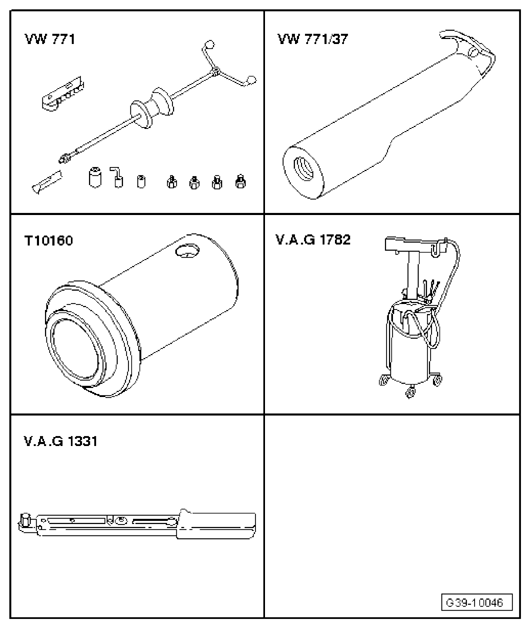

• Slide Hammer Set - VW771-
• Slide Hammer Set - Hook - VW771/37-
• Seal Installer - Flange Shaft Oil Seal - T10160-
• Used Oil Collection and Extraction Unit - SMN372500-
• Torque Wrench 1331 5-50Nm - VAG1331-
• Sealing Grease - G 052 128 A1-
• Inductive Heater - VAS6414-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -1- Puller - Kukko Internal - 46-56mm - Kukko 21/7-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -4- Puller - Kukko Counterstay - Kukko 22/2-
• Bearing Installer - Differential Bearing - 40-21-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Multiple Use - 40-105-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
