Special Tools

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

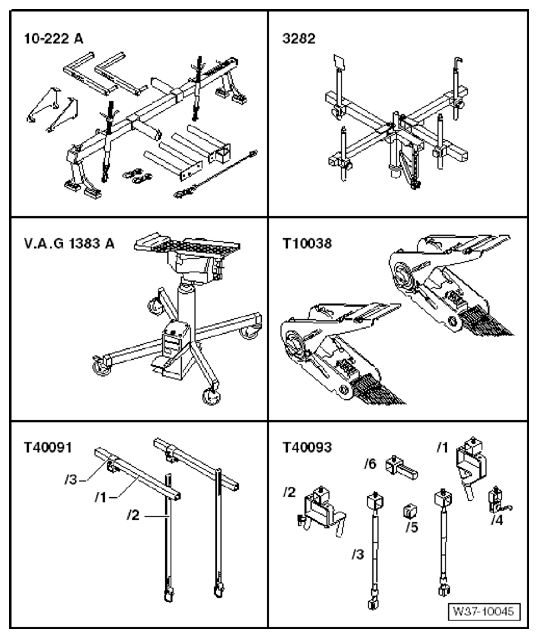

Engine Support Bridge - 10-222A-
Transmission Support - 3282-
Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
Engine and Gearbox Jack - VAS6931-
Tensioning Strap - T10038-
Engine Support - Basic Set - T40091-
Engine Support - Supplement Kit - T40093A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

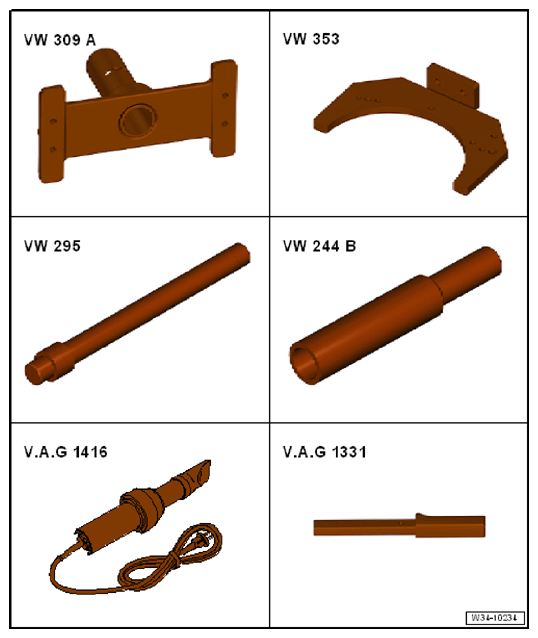

Holding Plate - VW309A-
or Holding Plate - VW309A-
Transmission Support - VW353-
Bearing/Bushing Installer - Multiple Use - VW295-
Bearing Driver - Multiple Use - VW244B-
Hot Air Blower - VAG1416-
Torque Wrench 1331 5-50Nm - VAG1331-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

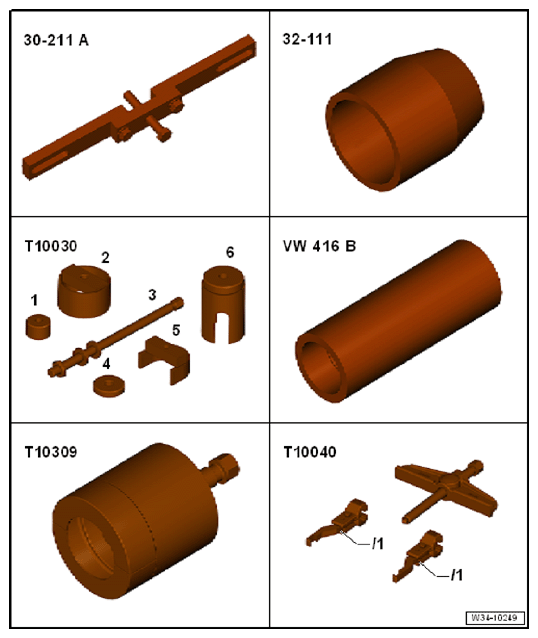

Bracket - Multiple Use - 30-211A-
Bearing Installer - Multiple Use - 32-111-
Assembly Tool Kit - Press Piece 2 - T10030/4- from the Hydraulic Press - Bushing Tool Kit - T10030-
Press Piece - 37mm - VW416B-
Puller - Transmission Gears - T10309-
Puller - Two Arm - T10040-
With the Puller - Two Arm w/Thrust Piece - T10040/2A-
Puller - Two Arm Thrust Piece - T10040/3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

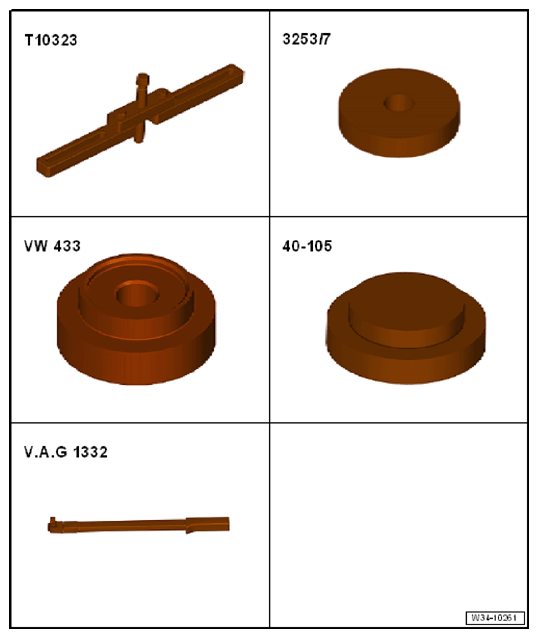

Support Bridge - T10323-
Rear Wheel Bearing Kit - Piece 7 - 3253/7-
Press Piece - Multiple Use - VW433-
Torque Wrench 1332 40-200Nm - VAG1332-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

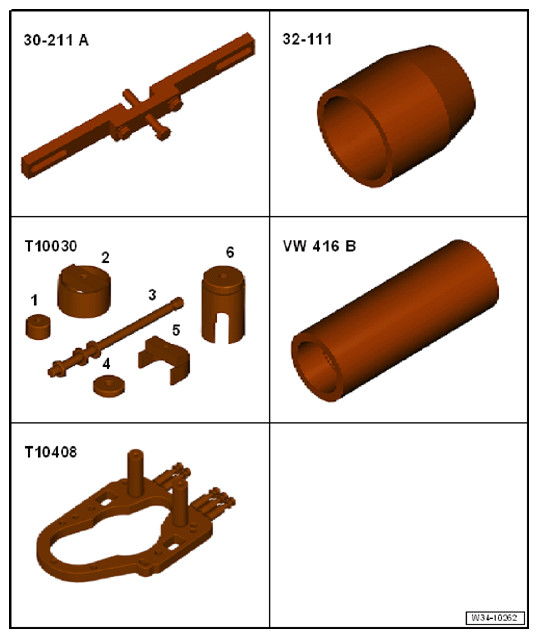

Bracket - Multiple Use - 30-211A-
Bearing Installer - Multiple Use - 32-111-
Assembly Tool Kit - Press Piece 2 - T10030/4- from the Hydraulic Press - Bushing Tool Kit - T10030-
Press Piece - 37mm - VW416B-
Puller - Transmission Gears - T10408-
Puller - Transmission Gears - Thrust Piece - T10408/2-
Spacer Plate - T10408/3-
M7 x 35 hex collar bolt and washer (components of the Puller - Transmission Gears - T10408-)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

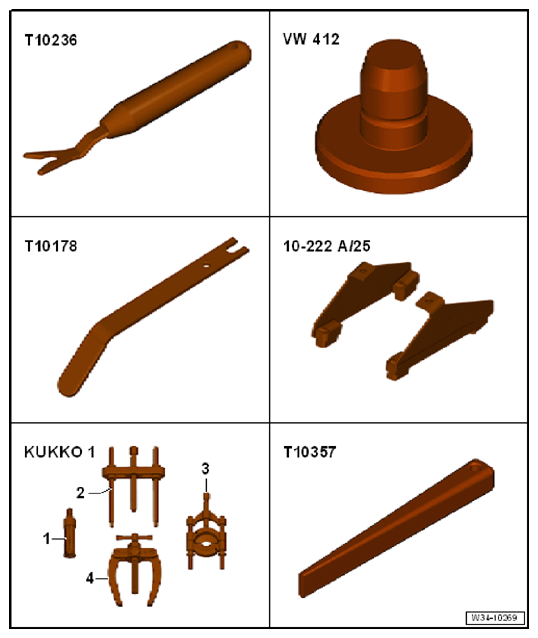

Window Release Tool - T10236-
Press Piece - Multiple Use - VW412-
Over-Center Spring Assembly Tool - T10178- or flat iron, 200 x 25 x 5
Engine Support Bridge - Engine Support 25 - 10-222A/25- or flat iron, 350 X 30 X 5
- 4- = Puller - Counterstay, for example -Kukko 22/4-
Wedge - T10357-
Connecting Pin - T10027A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Block - T10083-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Seal Installer - One-Piece Seal - T10148-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Breather Tube Tool - T10203-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers - VAG1275A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - VAS6100-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Inductive Heater - VAS6414-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing/Bushing Installer - Multiple Use - VW295A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Plate - VW309A-
or Holding Plate - VW309A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Shift Rod/Alternator - VW423-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use - VW447H-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use - VW512-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer Set - VW771-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer Set - Hook - VW771/37-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-2- Puller - Kukko Puller - 60-150mm Width, 200mm Length - 18/1- (quantity 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly Mandrel for Gear Selector Rod - 10-508-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pry Lever - 80-200-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Spring Strut Compressor - 2070-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Spindle from the Seal Installer - Driver Set - 3066-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support - Pins 29 - 3282/29-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support - Mounting Plate 39 - 3282/39-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support Jig - 3336-
