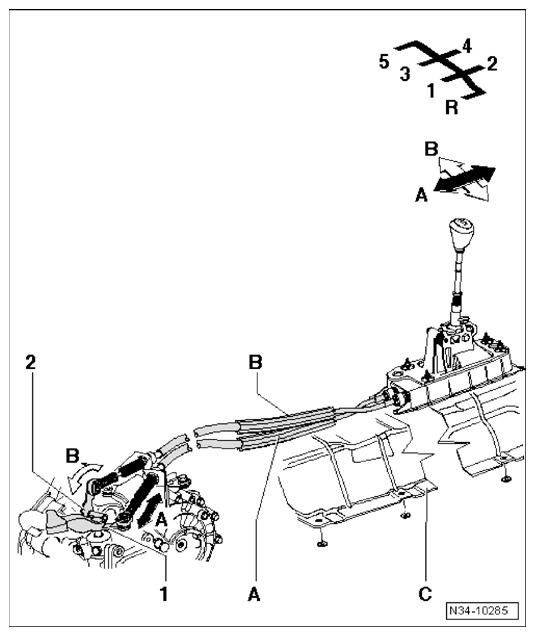

Selector Mechanism Installation Position
WARNING: This page is about a different variant/trim than selected.
-Arrow A- Gearshift Lever Movement
-Arrow B- Selector Lever Movement
- Gearshift Lever Cable
- Selector Cable
- Heat Shield
- Remove the shift mechanism before removal.
- Selector Lever
- Relay Lever
