Service Position, Implementing

WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following:

-- Remove the left and right bolts -3- on the back of the headlamp.

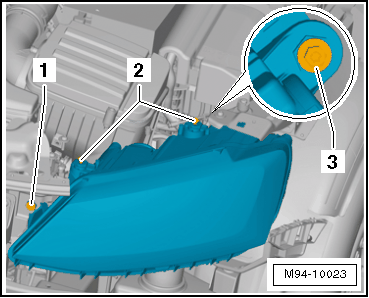

Fig 1: Removing 3 Rear Headlamp Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

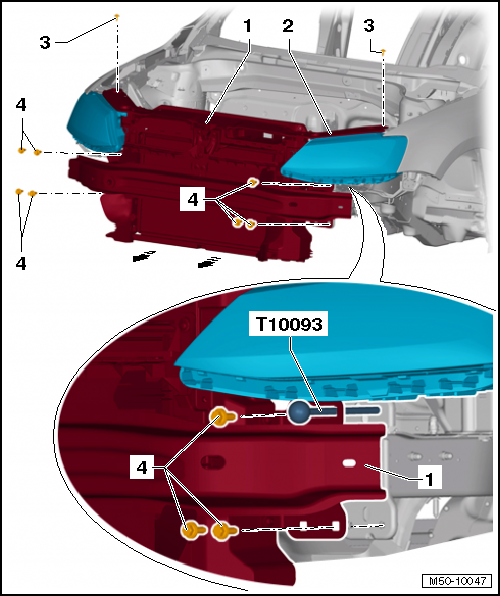

Fig 2: Removing Front Bumper Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front bumper cover, refer to FRONT BUMPER COVER .

-- Disconnect the cable from the cable coupling, refer to HOOD CABLE, DISCONNECTING .

-- If the vehicle has a charge air cooler, disconnect the pressure hoses, refer to PRESSURE HOSES .

-- Remove only one bolt -4- from the left and right longitudinal members.

-- Install a Guide Pins T10093 into the holes in the left and right longitudinal member where the bolts were.

-- Remove the remaining bolts -4- in the left and right longitudinal members.

Have a second technician hold the hood and support rod.

-- Remover the upper left and right bolts -3- from the brackets -2-.

-- Pull the lock carrier and attachments -1- forward approximately 10 cm on the Guide Pins T10093 -arrows-. Be careful of the wires on the lock carrier. Disconnect the connectors if necessary.
