Transmission Identification

WARNING: This page is about a different car, the 2014 Volkswagen Jetta and 2013 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

The "7-speed DSG® transmission 0CG" is installed in the Jetta from MY 11. Allocation, refer to TRANSMISSION/ENGINE ALLOCATION .

NOTE:

The transmission code letters are also included on the vehicle data labels.

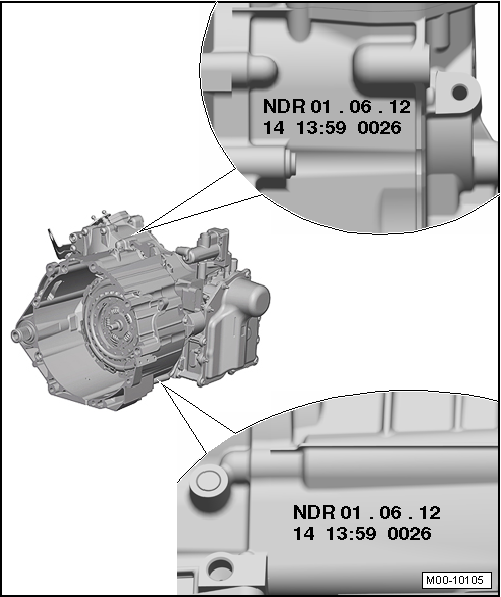

Fig 1: Locating Transmission Identification
GWWM00-10105Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. NDR -

    Transmission Code

    TRANSMISSION/ENGINE ALLOCATION

  2. 01. 06.12 -

    Build date: 06/01/2013

  3. 14 -

    Plant Code

  4. 13:59 -

    Time

  5. 0026 -

    Serial Number
