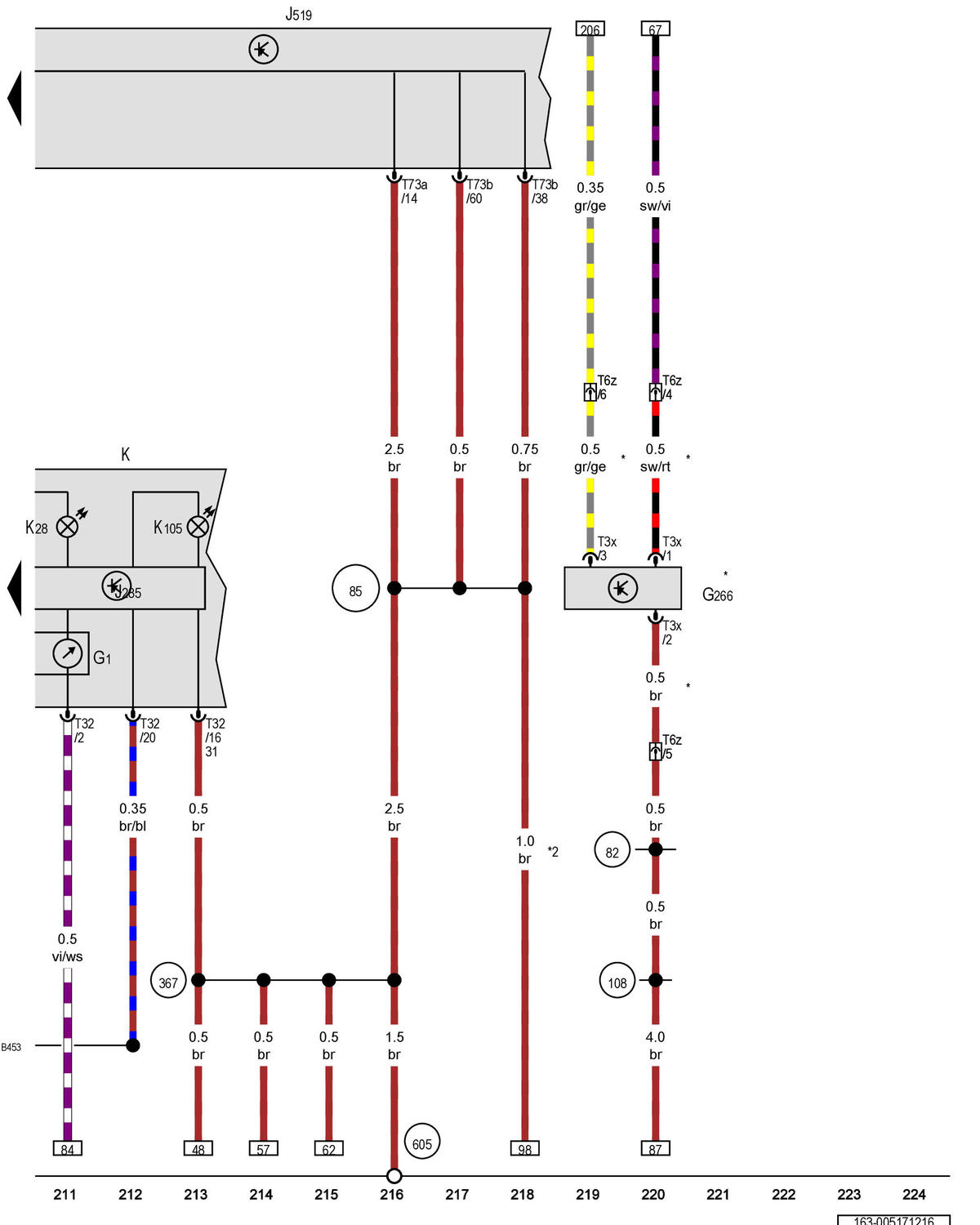

Fuel Gauge, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Engine Coolant Level/Temperature Indicator Lamp, Low Fuel Level Indicator Lamp
G1
Fuel gauge
G266
Oil level thermal sensor
J285
Instrument cluster control module
J519
Vehicle electrical system control module
K
Instrument cluster
K28
Engine coolant level/temperature indicator lamp
K105
Low fuel level indicator lamp
T3x
3-pin connector
T6z
6-pin connector
T32
32-pin connector
T73a
73-pin connector
T73b
73-pin connector
Ground connection 1 (in left front wiring harness)
Ground connection 1 (in engine compartment wiring harness)
Ground connection 2 (in left front wiring harness)
Ground connection 2 (in main wiring harness)
Ground connection on upper steering column
Sensor connection 1 (in main wiring harness)
* Only For Vehicles With Flexible Service Interval Reminder
*2 Only For Countries With Cold Climates
