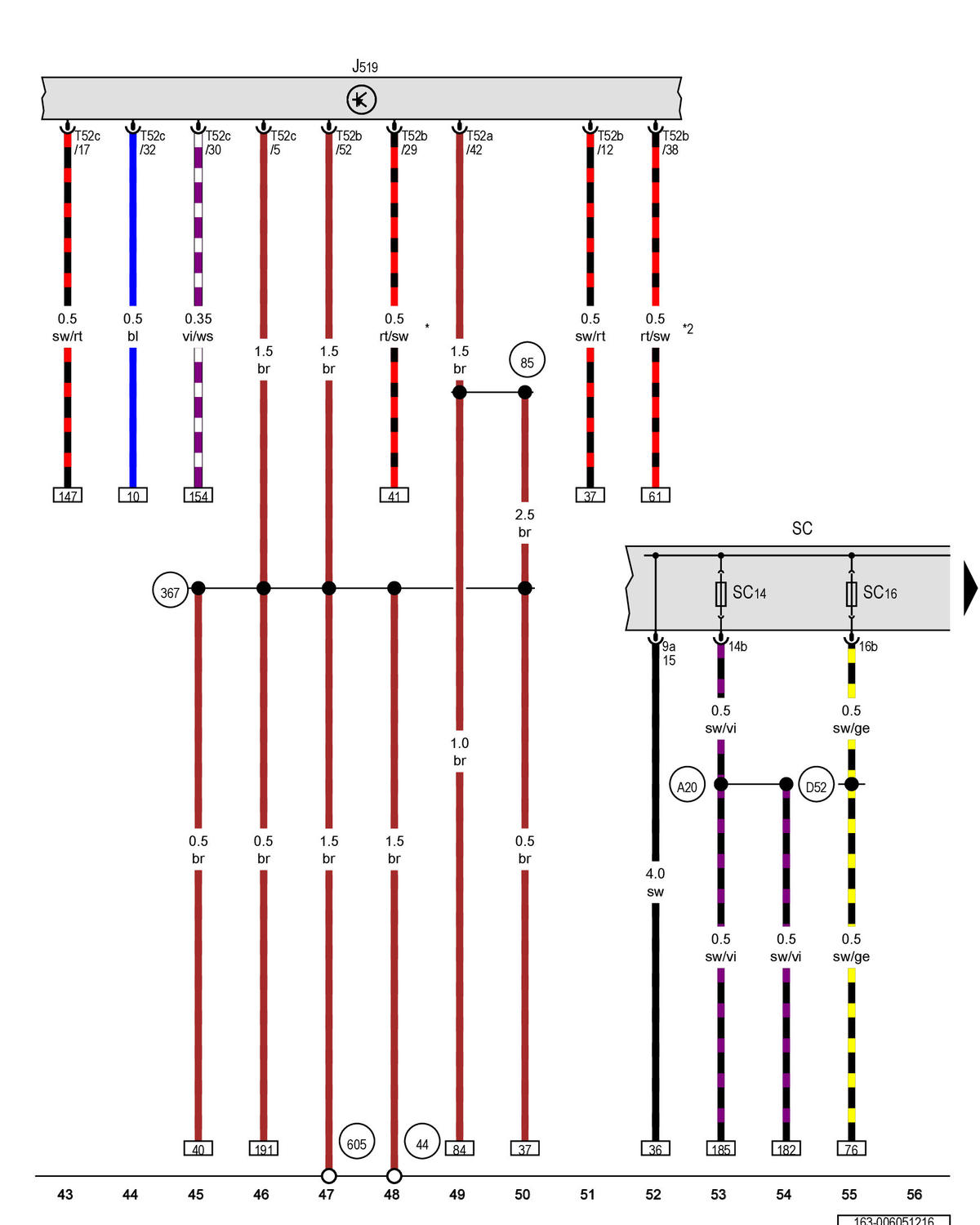

Vehicle Electrical System Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle electrical system control module

Fuse panel C

SC14

Fuse 14 (on fuse panel C)

SC16

Fuse 16 (on fuse panel C)

T52a

52-pin connector

T52b

52-pin connector

T52c

52-pin connector

Ground connection on A-pillar, lower left

Ground connection 1 (in engine compartment wiring harness)

Ground connection 2 (in main wiring harness)

Ground connection on upper steering column

Positive connection 15a (in instrument panel wiring harness)

Positive connection (15a) (in engine compartment wiring harness)

* Diameter Depends On Equipment

* 2 From July 2016
