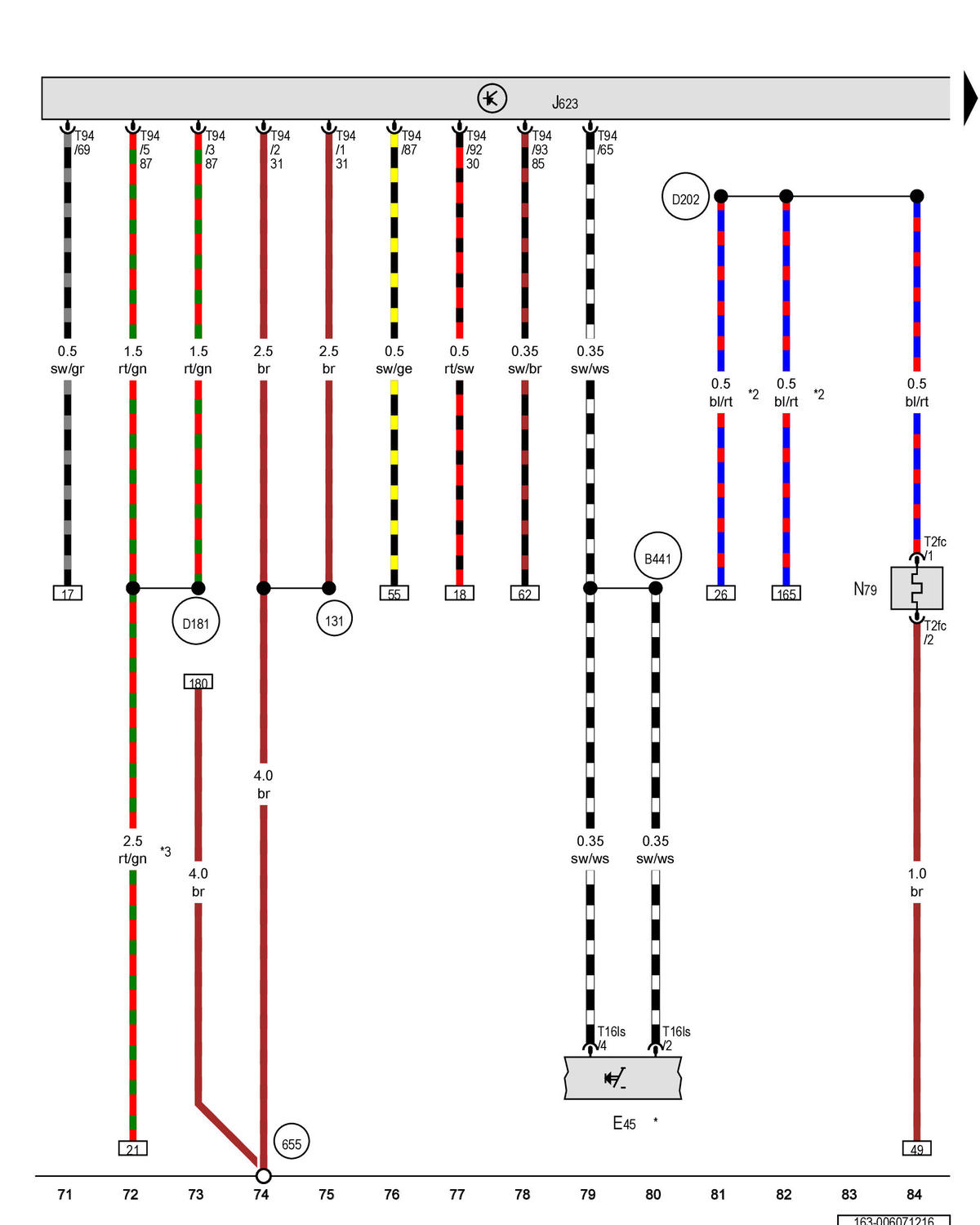

Engine Control Module
E45
Cruise control switch
J623
Engine control module
N79
Positive crankcase ventilation heating element
T2fc
2-pin connector
T16ls
16-pin connector
T94
94-pin connector
Ground connection 2 (in engine compartment wiring harness)
Ground connection on left headlamp
Cruise control connection (in main wiring harness)
Connection 2 (87a) (in engine compartment wiring harness)
Connection 6 (87a) (in engine compartment wiring harness)
* Only For Vehicles With Cruise Control
*2 Only For Countries With Cold Climates
*3 Diameter Depends On Equipment

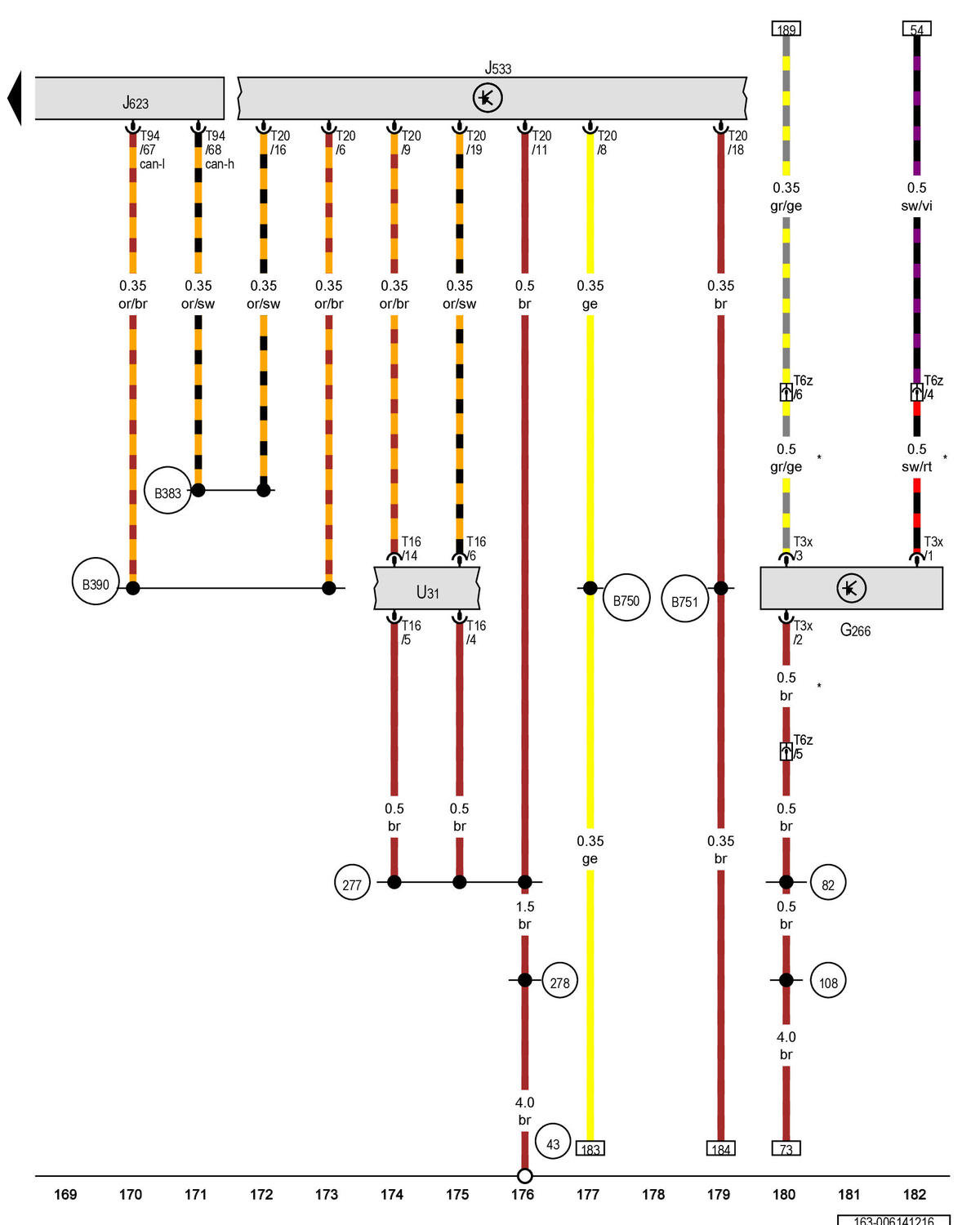

G266
Oil level thermal sensor
J533
Data bus on board diagnostic interface
J623
Engine control module
T3x
3-pin connector
T6z
6-pin connector
T16
16-pin connector
T20
20-pin connector
T94
94-pin connector
U31
Diagnostic connection
Ground connection on A-pillar, lower right
Ground connection 1 (in left front wiring harness)
Ground connection 2 (in left front wiring harness)
Ground connection 3 (in interior wiring harness)
Ground connection 4 (in interior wiring harness)
Powertrain CAN bus high connection 1 (in main wiring harness)
Powertrain CAN bus low connection 1 (in main wiring harness)
CAN bus High display and control connection 1
CAN bus Low display and control connection 1
*Only For Vehicles With Flexible Service Interval Reminder
