Telephone Transceiver -R36-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Move the right front seat into its highest position and the move it all the back.

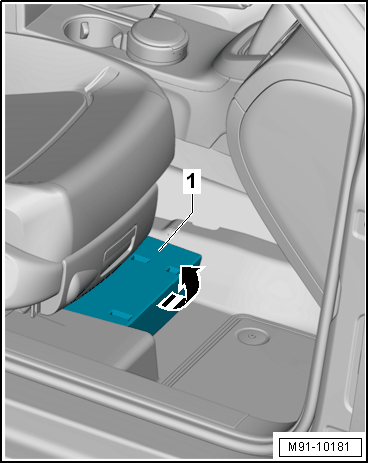

-- Remove the cover -1- from under the seat in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

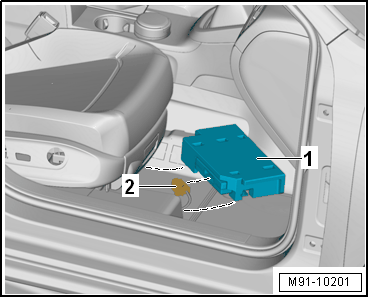

-- Disconnect the connector -2- from the Telephone Transceiver -R36- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

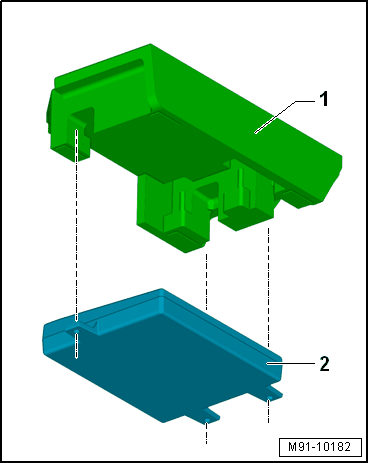

-- Remove the Telephone Transceiver -R36- -2- from the foam insert -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
