Telephone Baseplate -R126-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the Cellular Telephone -R54- from the Telephone Baseplate -R126-.

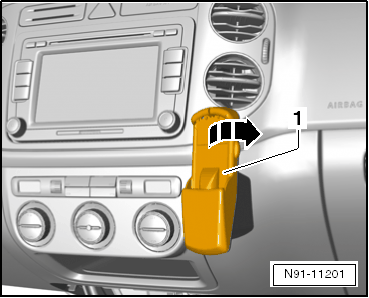

-- Turn the Telephone Baseplate -R126- -1- clockwise in direction of -arrow- and loosen the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiring harness.

-- Disconnect the connector.
