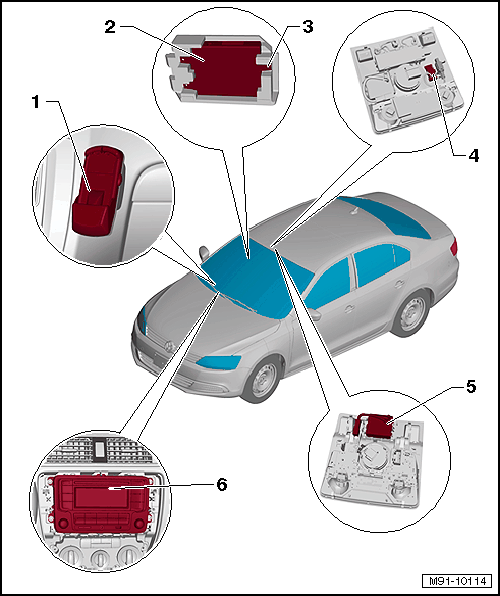

Overview - Component Location Telephone System
- Telephone Baseplate -R126-
- 2 Nm
- Bolt
- Removing and installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Telephone Transceiver -R36-
- Under the right front seat
- Connector assignment. Refer to Telephone Transceiver -R36- CONNECTOR ASSIGNMENT .
- Removing and installing. Refer to Telephone Transceiver -R36-, REMOVING AND INSTALLING .
- Foam Insert
- Telephone Microphone -R38-
- In the Front Interior Lamp -W1-
- Removing and installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Cellular Telephone Preparation Control Head -E508-
- In the Front Interior Lamp -W1-
- Removing and installing. Refer to Cellular Telephone Preparation Control Head -E508-, REMOVING AND INSTALLING .
- Radio/RNS
- Radio - R-. Refer to RADIO .
- RNS. Refer to NAVIGATION SYSTEM .
