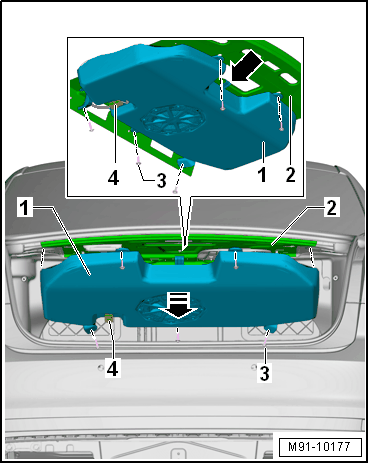

Subwoofer -R211-, REMOVING AND INSTALLING: Removing
-- Switch off the ignition and all electrical consumers and remove the ignition key.
-- Disconnect the connector -4-.
CAUTION:
If the Subwoofer -R211- starts to fall down after removing the first bolt, then the mounting tabs still connected will get damaged. Have a second technician hold the Subwoofer -R211- to keep it from falling down.
-- Remove the bolts -3-.
-- Disengage the Subwoofer -R211- -1- from the rear shelf -2- and remove it from the luggage compartment.
