Overview - Sound System, VOLKSWAGEN Sound

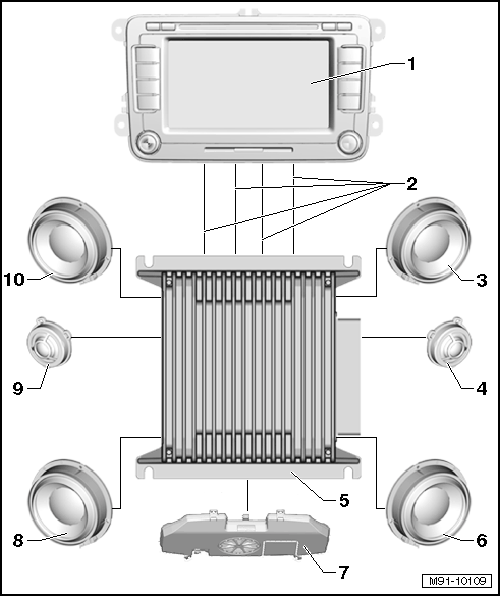

Fig 1: Exploded View Of Sound System, Volkswagen Sound
GWWM91-10109Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radio -R-
  2. LF Wires
  3. Right Front Bass Speaker -R23-
    • Inside the right front door
  4. Right Front Treble Speaker -R22-
    • In the right A-pillar
  5. Amplifier -R12-
    • Under the left front seat
  6. Right Rear Bass Speaker -R17-
    • Inside the right rear door
  7. Subwoofer -R211-
    • Inside the luggage compartment under the rear shelf
  8. Left Rear Bass Speaker -R15-
    • Inside the left rear door
  9. Left Front Treble Speaker -R20-
    • In the left A-pillar
  10. Left Front Bass Speaker -R21-
    • Inside the left front door
