Overview - Sound System, 8 Speakers

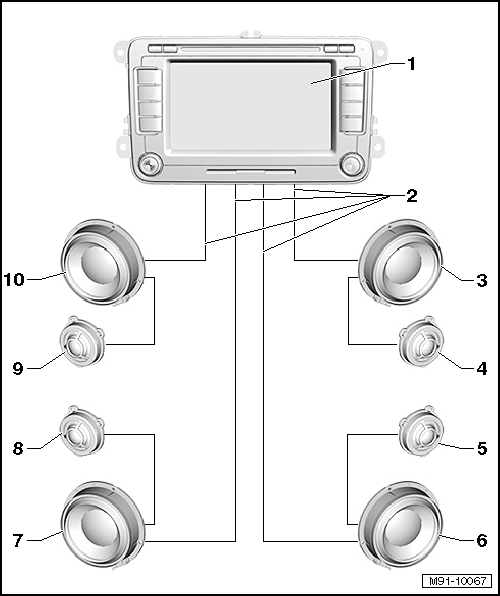

Fig 1: Exploded View Of Sound System, 8 Speakers

GWWM91-10067

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio -R-
LF Wires
Right Front Bass Speaker -R23-
- Inside the right front door
Right Front Treble Speaker -R22-
- In the right A-pillar
Right Rear Treble Speaker -R16-
- Inside the right rear door
Right Rear Bass Speaker -R17-
- Inside the right rear door
Left Rear Bass Speaker -R15-
- Inside the left rear door
Left Rear Treble Speaker -R14-
- Inside the left rear door
Left Front Treble Speaker -R20-
- In the left A-pillar
Left Front Bass Speaker -R21-
- Inside the left front door
