Overview - Sound System, 4 Speakers

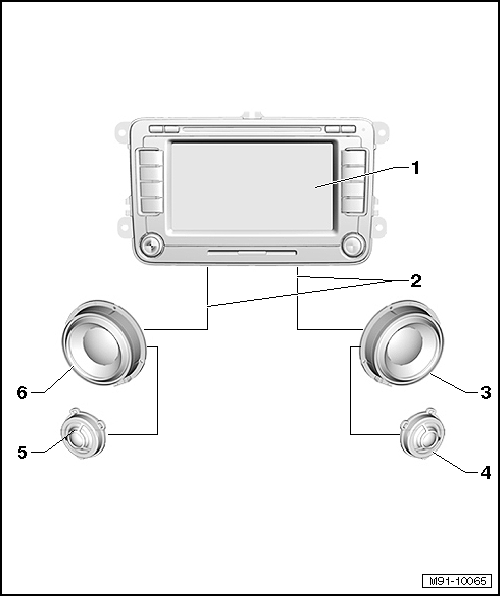

Fig 1: Exploded View Of Sound System, 4 Speakers
GWWM91-10065Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radio -R-
  2. LF Wires
  3. Right Front Bass Speaker -R23-
    • Inside the right front door
  4. Right Front Treble Speaker -R22-
    • In the right A-pillar
  5. Left Front Treble Speaker -R20-
    • In the left A-pillar
  6. Left Front Bass Speaker -R21-
    • Inside the left front door
