CONNECTOR ASSIGNMENTS, Amplifier -R12-, WITH 38-PIN CONNECTOR

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

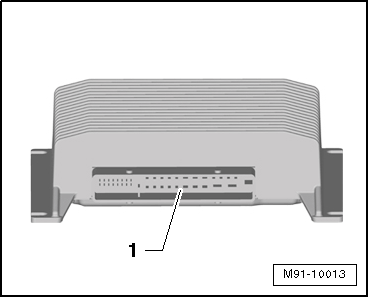

1. Multi-pin connector, 38-pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Terminal 31
2. Terminal 30
3. Right Front Bass Speaker -R23- (-)
4. Subwoofer in Rear Shelf -R157- (-) 2
5. Subwoofer in Rear Shelf -R157- (+) 1
6. Left Front Bass Speaker -R21- (-)
7. Right Front Treble Speaker -R22- (-)
8. Left Front Treble Speaker -R20- (+)
9. Left Rear Bass Speaker -R15- (+)
10. Right Rear Bass Speaker -R17- (-)
11. Right Front Midrange Speaker -R104- (-)
12. Right Front Midrange Speaker -R104- (+)
13. Left Front Midrange Speaker -R103- (+)
14. Left Front Midrange Speaker -R103- (-)
15. Right Front Bass Speaker -R23- (+)
16. Subwoofer in Rear Shelf -R157- (+) 2
17. Subwoofer in Rear Shelf -R157- (-) 1
18. Left Front Bass Speaker -R21- (+)
19. Right Front Treble Speaker -R22- (+)
20. Left Front Treble Speaker -R20- (-)
21. Left Rear Bass Speaker -R15- (-)
22. Right Rear Bass Speaker -R17- (+)
23. CAN Bus low
24. Not Assigned
25. Not Assigned
26. Not Assigned
27. Left Rear Signal Input (-)
28. Right Rear Signal Input (-)
29. Left Front Signal Input (-)
30. Right Front Signal Input (-)
31. CAN Bus high
32. Not Assigned
33. Not Assigned
34. Not Assigned
35. Left Rear Signal Input (+)
36. Right Rear Signal Input (+)
37. Left Front Signal Input (+)
38. Right Front Signal Input (+)
