Amplifier -R12-, REMOVING AND INSTALLING: Removing

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Move the left front seat into its highest position and the move it all the back.

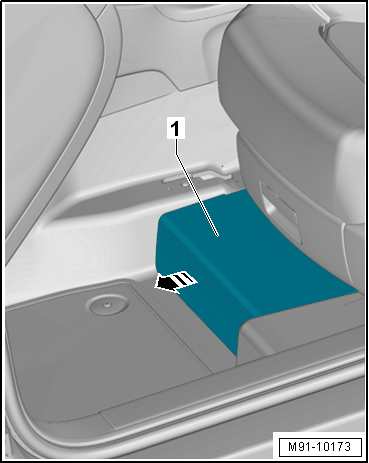

-- Pry up the cover -1- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

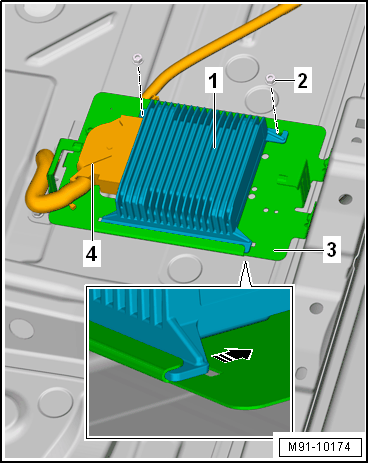

-- Disconnect the connector -4-.

-- Remove the bolts -2-.

-- Remove the Amplifier -R12- -1- in direction of -arrow- from the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
