Component Location Overview - Infotainment System

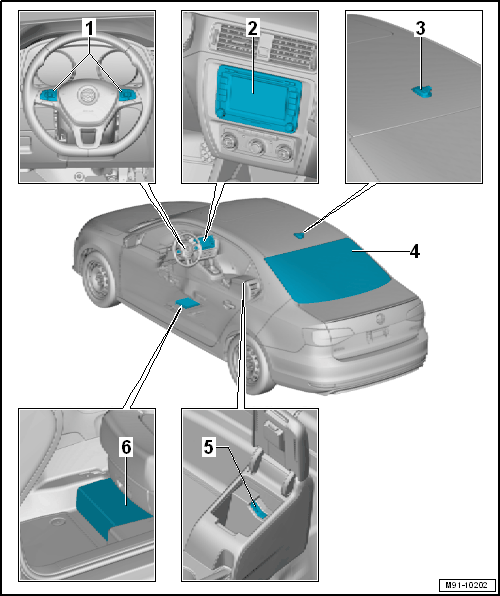

GWWM91-10202Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Multifunction Buttons on the Right Side of the Steering Wheel
  2. Front Information Display Control Head -J685-
  3. Roof Antenna -RX5-
  4. Rear Window Antenna
  5. Connection for External Multimedia Devices
  6. Amplifier - R12- for the Digital Sound System
