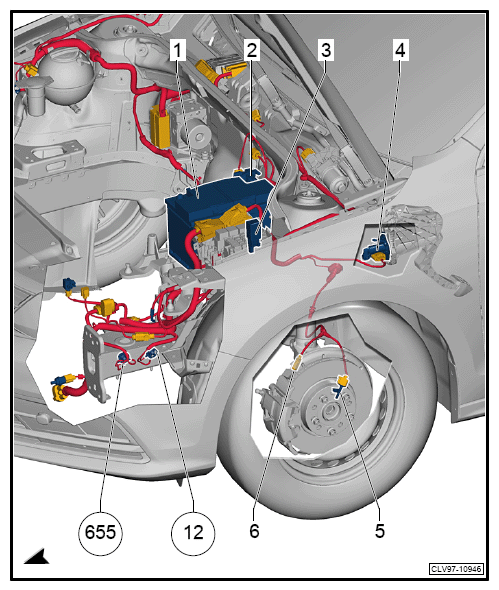

Engine Compartment, Driver
- 1 - Battery -A-
- 2 - Battery monitoring control module -J367-
- 3 - Automatic glow time control module -J179-
- 4 - Clutch position sensor -G476-
- 5 - Left front ABS wheel speed sensor -G47-
- 6 - Left front brake pad wear sensor -G34-
- 12 - Ground connection in engine compartment, left
- 655 - Ground connection on left headlamp
