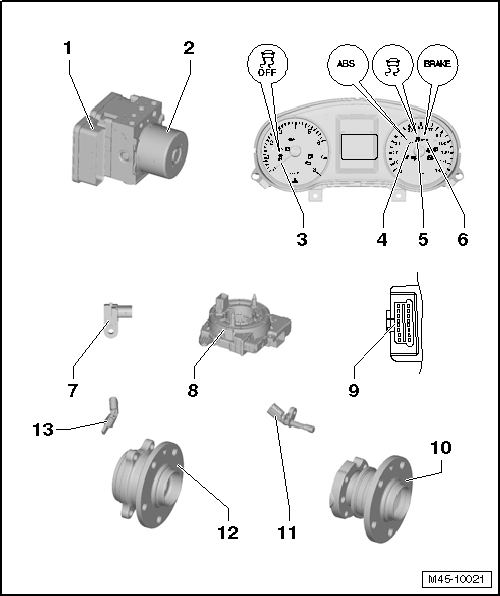

Abs Mark 60 EC
- ABS Control Module -J104-
- Component location: on the ABS Hydraulic Unit -N55- inside the engine compartment on the right side.
- Do not disconnect the connector before successfully completing OBD. Switch off the ignition before disconnecting the connector.
The following components are integrated inside the ABS Control Module -J104- :
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251- (depending on vehicle equipment)
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- ABS Hydraulic Unit -N55-
- Component location: in the engine compartment on the right side
The ABS Hydraulic Unit -N55- consists of the following components:
- ABS Hydraulic Pump -V64-
- Brake Pressure Sensor 1 -G201-
- Valve block (contains intake and exhaust valves)
- The ABS Hydraulic Pump -V64- and valve block must not be separated from one another.
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- Component location: in the engine compartment on the right side
- ESC Off Indicator Lamp --
- Component location: in the instrument cluster
- ABS Indicator Lamp -K47-
- Component location: in the instrument cluster
- ESC Indicator Lamp --
- Only on vehicles with ABS/EDL/ASR/ESP
- Component location: in the instrument cluster
- Brake System Indicator Lamp -K118-
- Component location: in the instrument cluster
- Brake Lamp Switch -F-
- Including the Brake Pedal Switch -F47-
- Component location: on the brake master cylinder
- Removing and installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING .
- Steering Angle Sensor -G85-
- Removing and installing. Refer to SENSORS .
- Data Link Connector
- Component location: driver side footwell cover
- Rear Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing
- Rear Speed Sensor --
- Removing and installing. Refer to SENSORS .
- Front Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing
- Front Speed Sensor --
- Removing and installing. Refer to SENSORS .
