Engine Speed Sensor -G28-, Removing And Installing: Removing

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

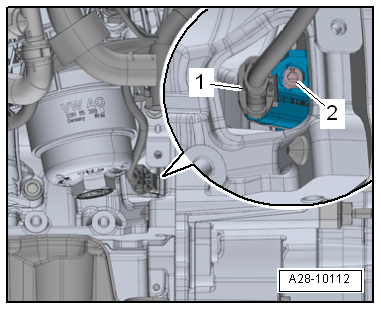

-- Disconnect the connector -1- using the :T10118 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To release the connector without the :T10118 , push the connector on the engine speed sensor using a screwdriver. Simultaneously lift up on the release button using a thin wire hook.

-- Remove the bolt -2- and remove the Engine Speed Sensor -G28-.
