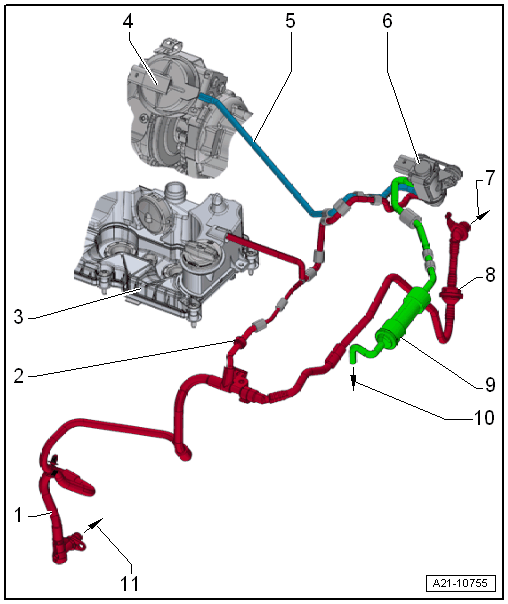

Connection Diagram - Vacuum System: Notes
- Vacuum Line
- Bolt for the line: 8 Nm
- To remove and install, remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- Installation Position. Refer to Vacuum Line Installation Position .
- Check Valve
- Note the installation position
- Cylinder Head Cover
- With vacuum reservoir
- Vacuum Diaphragm
- For charge air pressure regulation
- On the turbocharger
- Vacuum Control Line
- From Wastegate Bypass Regulator Valve -N75- to the turbocharger vacuum diaphragm
- Wastegate Bypass Regulator Valve -N75-
- To Brake Booster
- Check Valve
- Note the installation position
- Vent Line
- To Air Filter Housing
- To Vacuum Pump
- In the oil pump. Refer to OVERVIEW - OIL PAN/OIL PUMP .
