Control Module for Emergency Call Module and Communication Unit -J949-, CONNECTORS

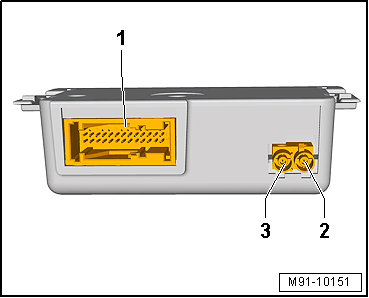

Fig 1: Control Module For Emergency Call Module and Communication Unit -J949-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Multi-pin connector, 26-pin
2. GPS Connection, GPS Antenna -R50-, with radio/not assigned with RNS
3. GSM Connection from Telephone Antenna -R65-

Fig 2: 26-Pin Connector 5, Audio And Video

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Terminal 30
2. Can Bus Low
3. Not Assigned
4. Telephone Microphone -R38- (+)
5. Telephone Microphone -R38- to RNS/UMI
6. Cellular Telephone Preparation Control Head -E508-
7. Cellular Telephone Preparation Control Head -E508-
8. Not Assigned
9. Not Assigned
10. Tel-LF (+) to Radio/RNS
11. Tel-LF (-) to Radio/RNS
12. Not Assigned
13. Not Assigned
14. CAN Bus High
15. Not Assigned
16. Not Assigned
17. Telephone Microphone -R38- (-)
18. Telephone Microphone -R38- to RNS/UMI
19. Cellular Telephone Preparation Control Head -E508-
20. Cellular Telephone Preparation Control Head -E508-

21 through 25 - not assigned

26 -

Terminal 31
