Reducing Agent Tank, Filling: Procedure

NOTE:

Pay attention to the AdBlue Filling System VAS 6960 :VAS 6960 Owner's Manual.

Only use distilled water to clean AdBlue^® components. Do not use tap water.

-- Remove the tank cap in the luggage compartment -1-.

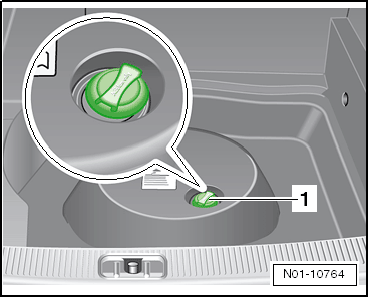

Fig 1: Identifying Open Tank Cap -1- In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Clean the reducing agent tank filler neck with a lint-free cotton cloth soaked in water.

-- Guide the nozzle from the AdBlue Filling System VAS 6960:VAS 6960 in the reducing agent tank filler neck and start the refilling procedure.

NOTE:

The nozzle from the AdBlue Filling System VAS 6960:VAS 6960 switches off automatically when the maximum fill level is reached.

-- Remove the nozzle.
