Engine Speed Sensor -G28-, Removing And Installing: Removing

-- Disconnect the Engine Speed Sensor -G28- connector -arrow-.

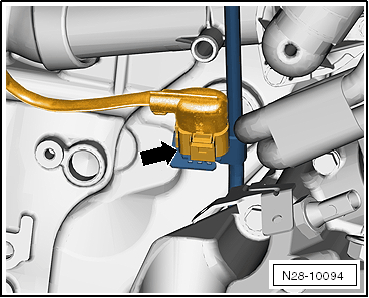

Fig 1: Identifying Engine Speed Sensor Harness Connector -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the Engine Speed Sensor - G28- cable downward through the opening in the oil filter housing -arrow-.

Fig 2: Identifying Opening In Oil Filter Housing -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove retaining bolts -A-.

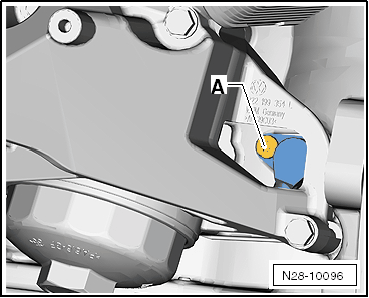

Fig 3: Identifying Bolt -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine Speed Sensor -G28- downward.
