Power Steering Assembly Overview, RHD: Notes

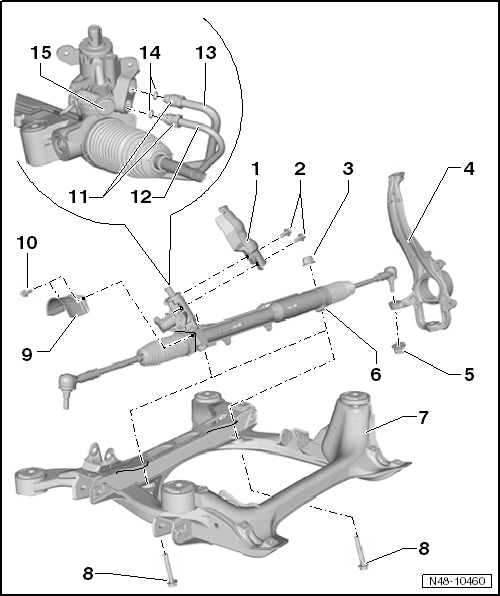

Fig 1: Identifying Power Steering, Right-Hand Drive Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Heat Shield
Hex bolt
- 10 Nm
Self-Locking Nut
- Always replace if removed
Wheel Bearing Housing
- Tapered holes must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- For the allocation. Refer to the Parts Information.
Self-Locking Nut
- 90 Nm
- Always replace if removed
Power Steering Gear
- Removing and installing. Refer to POWER STEERING GEAR, REMOVING AND INSTALLING, RHD .
Subframe
Hex bolt
- 90 Nm +90° additional turn
- Always replace if removed
Heat Shield
Hex bolt
- 9 Nm
Bolt
- 30 Nm
Return Line
Pressure Line
Seal
- Always replace
Servotronic Solenoid Valve -N119-
