Power Adjustable Steering Column Control Module -J866-, Removing And Installing: Removing

-- Remove the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

-- Release and disconnect the connector -1-.

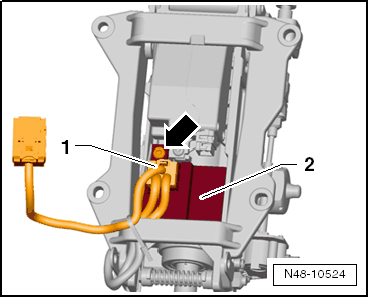

Fig 1: Identifying Connector -1-, Bolt -Arrow- And Power Adjustable Steering Column Control Module -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow-.

-- Slightly lift the Power Adjustable Steering Column Control Module -J866- -2- and remove it from the steering column.
