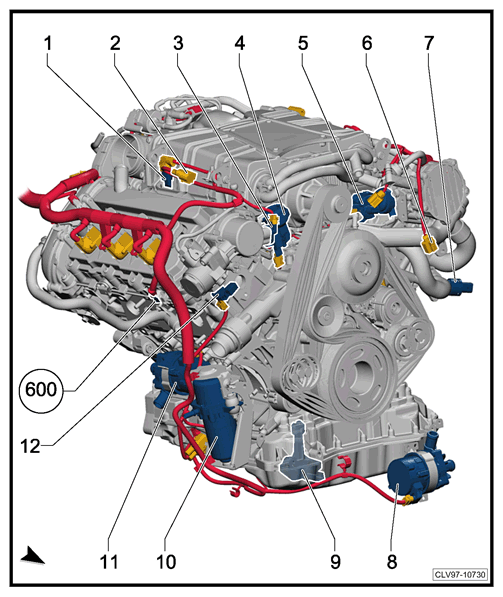

Front View
- Intake manifold temperature sensor -G72-
- 1 - Charge air pressure sensor -G31-
- 2 - Low fuel pressure sensor -G410-
- 3 - Camshaft position sensor -G40-
- 4 - Intake manifold runner position sensor -G336-
- 5 - Intake manifold runner position sensor 2 -G512-
- 6 - Coolant regulation valve -N515-
- 7 - Engine coolant temperature sensor -G62-
- 8 - Low temperature circuit coolant pump -V468-
- 9 - Oil level thermal sensor -G266-
- 10 - Brake system vacuum pump -V192-
- 11 - High temperature circuit coolant pump -V467-
- 12 - Fuel pressure regulator valve -N276-
- 600 - Ground connection on cylinder head, right
