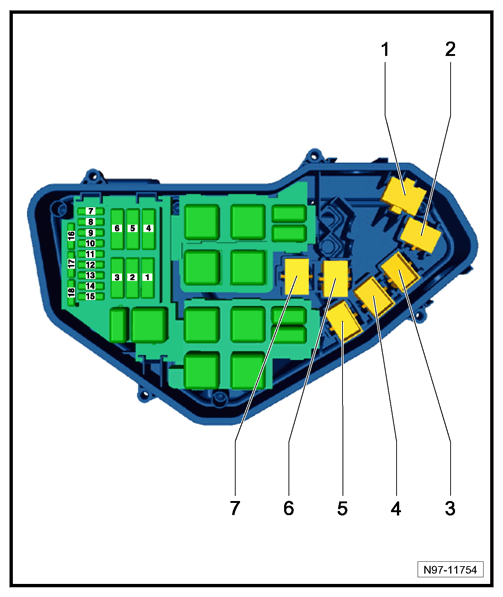

Coupling Stations, E-Box

  1. 1  - Red 10-pin connector -T10e-
  2. 1  - 17-pin connector -T17k-, Red
  3. 2  - Brown 6-pin connector -T6b-
  1. 2  - Brown 17-pin connector -T17g-
  2. 2  - Brown 17-pin connector -T17j-
  3. 3  - Green 10-pin connector -T10d-
  4. 4  - Blue 6-pin connector -T6a-
  5. 5  - Bright pink 10-pin connector -T10c-
  6. 6  - Black 17-pin connector -T17e-
  7. 6  - Black 6-pin connector -T6as-
  8. 6  - Black 10-pin connector -T10b-
  9. 7  - White 17-pin connector -T17f-
  10. 7  - White 6-pin connector -T6at-
G12750981Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
