Engine Speed Sensor -G28-, Removing And Installing: Installing: Notes

WARNING: This page is about a different variant/trim than selected.

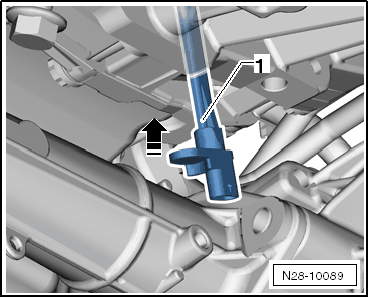

Fig 1: Inserting Engine Speed Sensor -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Engine Speed Sensor -G28- -1- into the opening on the engine and push it in until it stops.

Install In Reverse Order Of Removal.
