Rear Underbody Protection

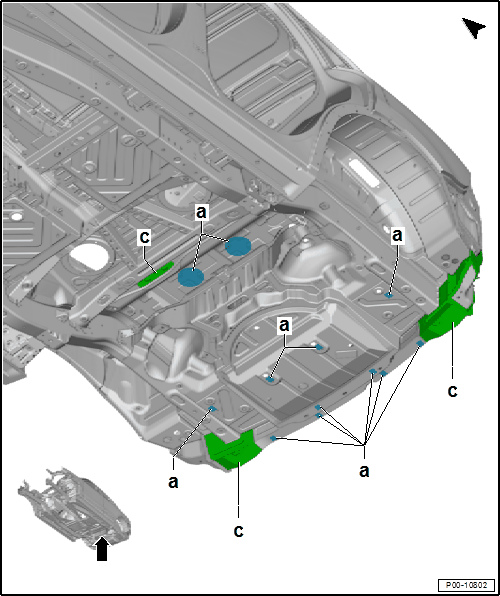

GWWP00-10802Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -Underbody Protection
    • Layer thickness 0.3 mm
  2. c -Underbody Protection
    • Layer thickness 0.6 mm
