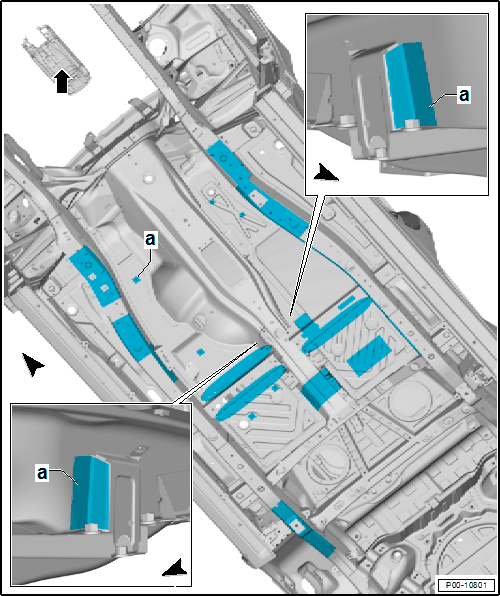

Center Underbody Protection
- a -Underbody Protection
- Layer thickness 0.3 mm
NOTE:
The underbody protection (stone impact protection) must be repaired back to its original visual appearance and layer thickness.
Water drain holes must remain free.
All threaded pins and weld nuts with M-threads, as well as all other pins and contact surfaces for the assembly must be functional underbody protection application.
