Left Front Wheel Housing Cover Points

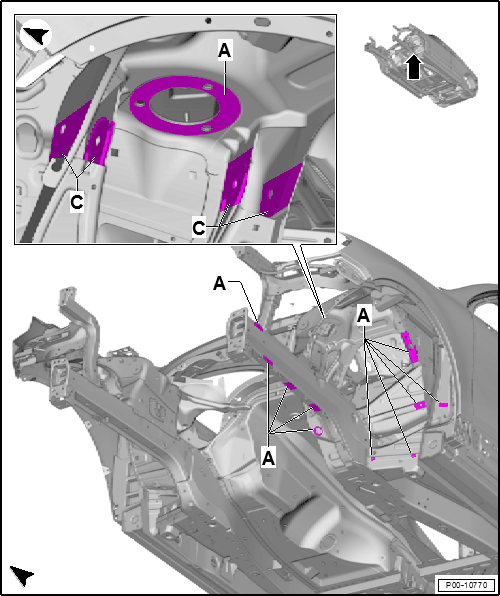

GWWP00-10770Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A -  Contact Surfaces Free of Wax Drops and Sealant
  2. C -  Contact Surface Free Of Wax and Sealant
