Engine Compartment Cover Points On The Left Side

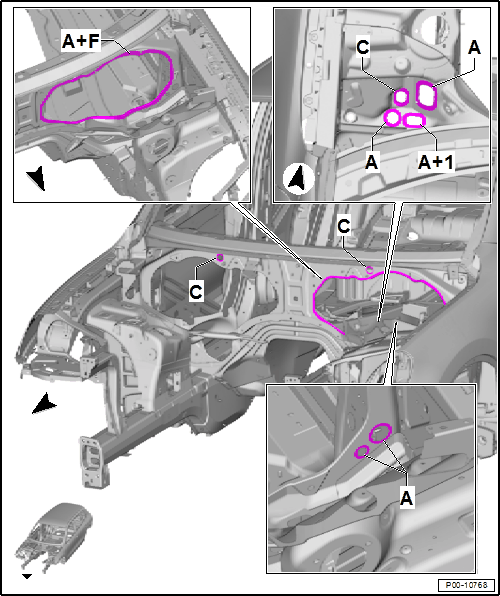

GWWP00-10768Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A -  Contact Surfaces Free of Wax Drops and Sealant
  2. C -  Contact Surface Free of Wax and Sealant
  3. F -  Cut Edge on the Bulkhead Wax Free All Around
  4. 1  - Cover Points Both Sides All Around 10 mm
