Location On Rear Final Drive

Location on Rear Final Drive -arrow-.

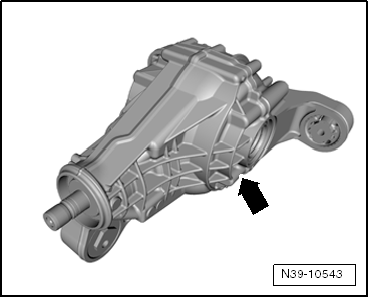

Fig 1: Locating Identification On Rear Final Drive -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Code Letters and Build Date of Rear Final Drive.

Fig 2: Code Letters And Date Of Manufacture Of Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

FKY	20	08	02
I	I	I	I
I	I	I	I
Codes	Day	Month	Production year (2002)

Additional data depend on the manufacturing.
