Component Location Overview - Injection System, Engine From Front

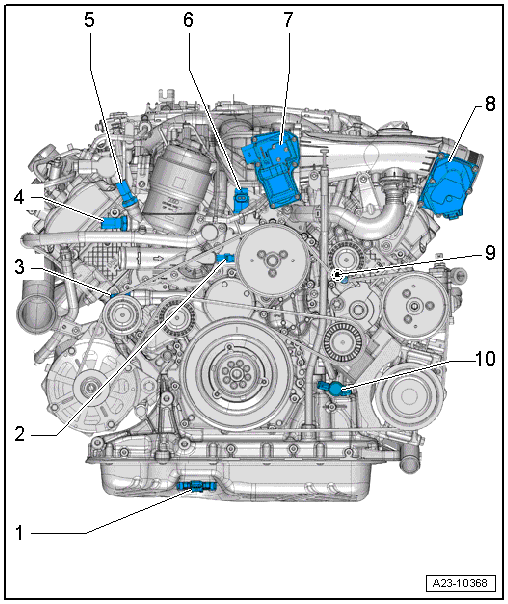

Fig 1: Fuel Injection System Component Parts Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Oil Level Thermal Sensor -G266-
2. Map Controlled Engine Cooling Thermostat -F265-
3. Oil Temperature Sensor 2 -G664-
4. Oil Pressure Switch -F22-
5. Reduced Oil Pressure Switch -F378-
6. EGR Cooler Switch-Over Valve -N345-
7. Intake Flap Motor -V157-
8. Throttle Valve Control Module -J338-
9. Engine Temperature Control Sensor -G694-
10. Oil Pressure Regulation Valve -N428-
