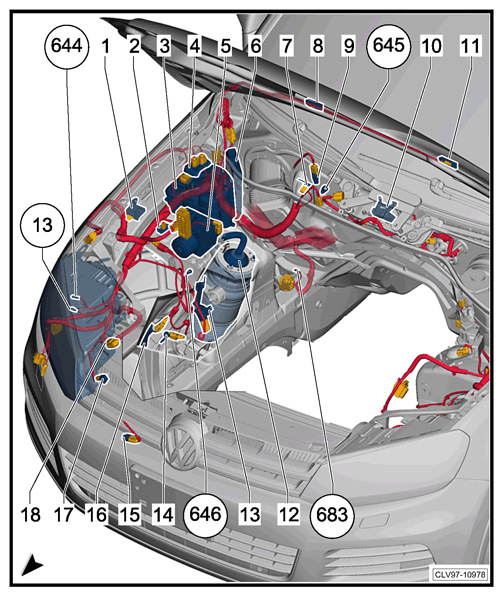

Engine Compartment, Right
- 1 - Right front tire pressure monitoring transmitter in wheel housing -G432-
- 2 - Right front body acceleration sensor -G342-
- 3 - Engine coolant level warning switch -F66-
- 3 - Engine coolant level sensor -G32-
- 4 - Windshield washer fluid level sensor -G33-
- 4 - Windshield and rear window washer pump -V59-
- 4 - Headlamp washer pump -V11-
- 5 - ABS control module -J104-
- 6 - Engine control module -J623-
- 6
- Engine control module 2 -J624-
- Not Shown, Located Next To Engine Control Module J623 If Equipped
- 7 - Air quality sensor -G238-
- 8 - Right washer nozzle heater -Z21-
- 9 - High pressure sensor -G65-
- 10 - Alarm horn -H12-
- 11 - Left washer nozzle heater -Z20-
- 12 - Right front damping adjustment valve -N337-
- 13 - Right front level control sensor -G289-
- 14 - Right front ABS wheel speed sensor -G45-
- 15 - Engine coolant temperature sensor on radiator outlet -G83-
- 16 - Right front brake pad wear sensor -G35-
- 17 - Passenger side front airbag crash sensor -G284-
- 18 - Right front headlamp -MX2-
- 18 - Right HID headlamp control module -J344-
- 18 - Right headlamp power output stage -J668-
- 18 - Right daytime running lamp and position lamp control module -J861-
- 13 - Ground connection in engine compartment, right
- 644
- Ground connection 4 in engine compartment, right
- 645 - Ground connection 1 on bulkhead
- 646 - Ground connection 2 on bulkhead
- 683 - Ground connection on right front side member
