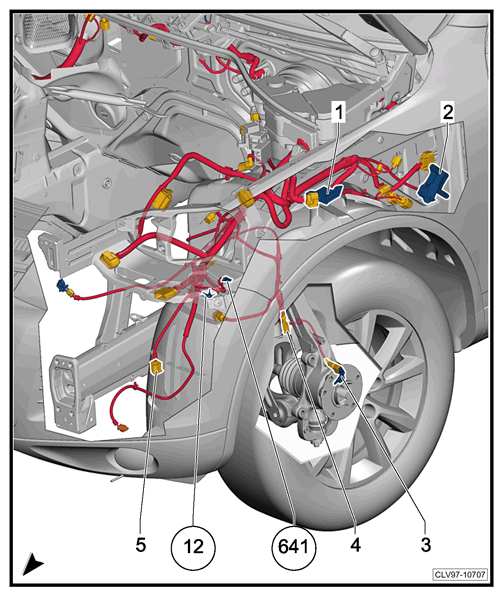

Engine Compartment Left, II
- 1 - Left front tire pressure monitoring transmitter in wheel housing -G431-
- 2 - Coolant shut-off valve -N82-
- 2
- Decoupler pressure actuator -N511-
- Installed Behind The Left Front Wheel Housing Liner.
- 3 - Left front ABS wheel speed sensor -G47-
- 4 - Left front brake pad wear sensor -G34-
- 5 - Secondary air injection pump motor -V101-
- 5 - Electrical power steering pump -V466-, Hybrid
- 12 - Ground connection in engine compartment, left
- 641 - Ground connection 3 in engine compartment, left
