Abs Components On Rear Axle, Removing And Installing

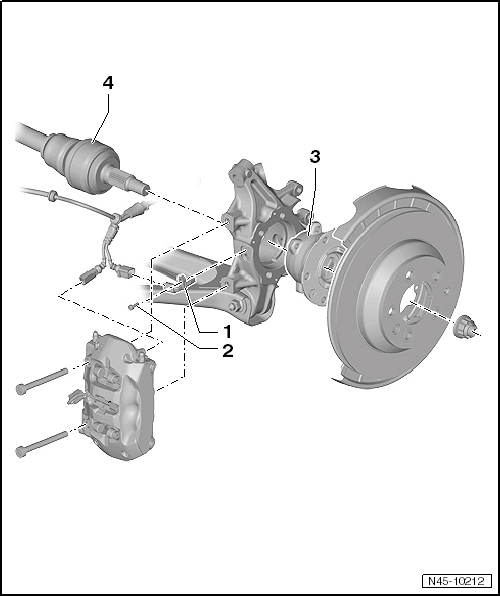

Fig 1: ABS Components On Rear Axle With Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. ABS Speed Sensor
   • Before inserting the sensor, clean inner surface of the hole and coat with Polycarbamide Grease:G 052 142 A2  .
   • Removing and installing. Refer to SPEED SENSOR ON REAR AXLE, REMOVING AND INSTALLING .
2. Hex socket bolt, 8 Nm
3. Wheel hub with wheel bearing
   • The ABS sensor ring is installed in the wheel bearing
4. Driveshaft
