Abs Components On Front Axle, Removing And Installing

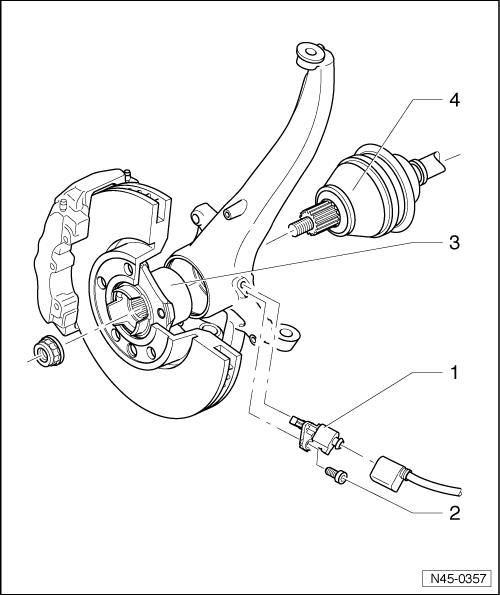

Fig 1: Front Axle, ABS Wheel Speed Sensor, Wheel Hub With Wheel Bearing Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. ABS Speed Sensor
   • Before inserting the sensor, clean inner surface of the hole and coat with Polycarbamide Grease:G 052 142 A2  .
   • Removing and installing. Refer to FRONT AXLE SPEED SENSOR, REMOVING AND INSTALLING .
2. Hex Socket Bolt
   • 8 Nm
3. Wheel Hub with Wheel Bearing
   • The ABS sensor ring is installed in the wheel bearing
4. Drive Axle
