Overview - Side Window

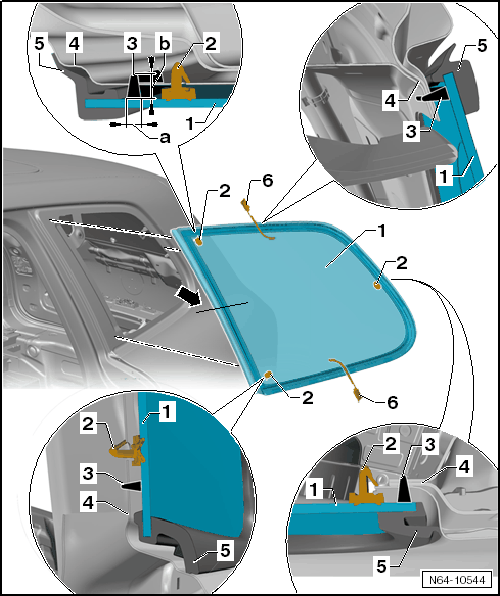

Fig 1: Side Window Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Side Window
- Side window, removing. Refer to UNDAMAGED SIDE WINDOW, REMOVING .
- Side window, installing. Refer to SIDE WINDOW, INSTALLING .
Clip
- Quantity: 3
- Disconnected with the cutting cord during removal.
PUR Adhesive Sealant
- Bead cross section: width = 6.5 mm -dimension a- height = 10 mm -dimension b- (including pre-coating, residual material on window glass and window flange)
- Minimum curing time. Refer to MINIMUM CURING TIME .
- The adhesive bead is installed in the center of the front edge -arrow-.
Body Flange
Seal
- Component part of side window.
Electrical Connections
- Depending on equipment.
