Lock Cylinder Cap, Removing And Installing: Installing

-- Place the lock cylinder cap -2- gently at an angle from above in direction of -arrow a- on the lock cylinder.

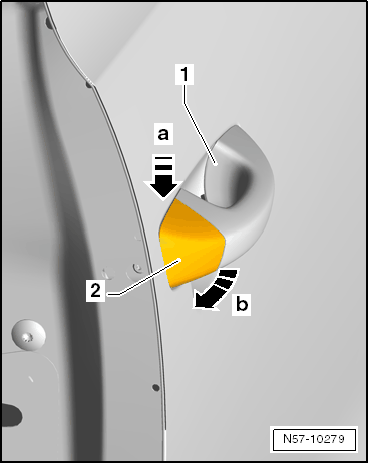

Fig 1: Identifying Installation Of Lock Cylinder Cover Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the lock cylinder cap -2- on to door in direction of -arrow b- until cover cap engages with lock cylinder.
