Bracket, Removing And Installing: Installing

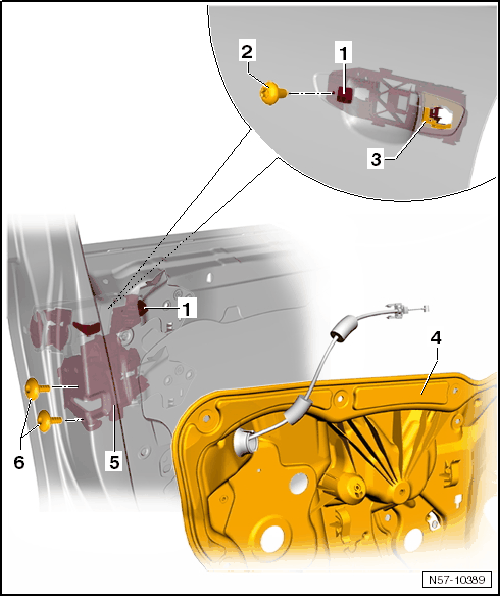

Fig 1: Identifying Mounting Bracket -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Tighten the bolt -2-, tightening specification: 1.5 Nm.

-- Tightening specification for bolts -6- : 20 Nm.

Then a function test must be performed because the lock will not open if the release cable is not adjusted and secured correctly.
