Hood Hook, Lubricating

Special Tools And Workshop Equipment Required

NOTE:

Vehicle Must Be At Least At Room Temperature.

-- Coat the hood safety catch with Universal Oil Spray :G 000 115 A2  at the positions marked with -arrows-.

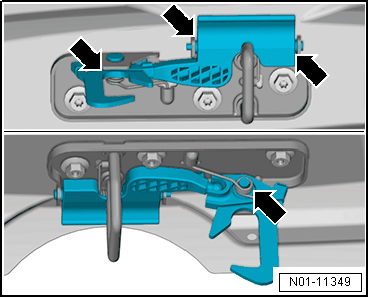

Fig 1: Identifying Hood Safety Catches
GWWN01-11349Courtesy of AUDI OF AMERICA, LLC

-- Operate the moveable components several times to allow the universal oil to seep in.

-- Remove any excess lubricant with a lint-free cloth.
