Control Module For Emergency Call Module And Communication Unit -J949-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the glove compartment. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

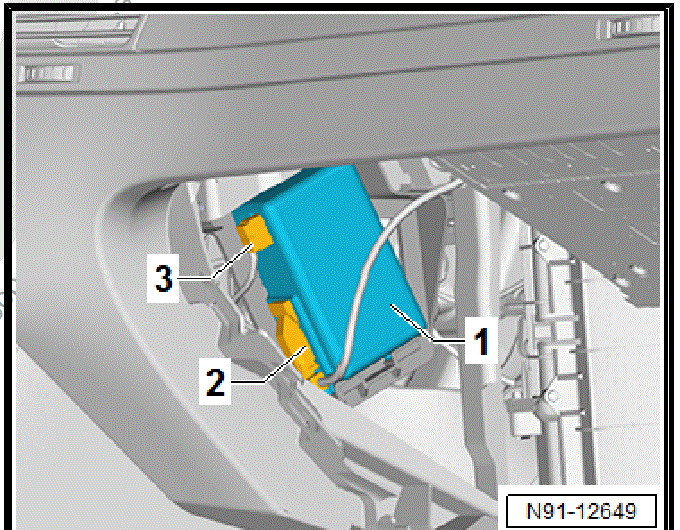

-- Disconnect the connectors -2- and -3- from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the retaining bracket -2- in direction of -arrow A-. While doing so, move the Control Module for Emergency Call Module and Communication Unit -J949- in direction of -arrow B-.

-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- toward the rear.
