Transmission Fluid Cooler Overview

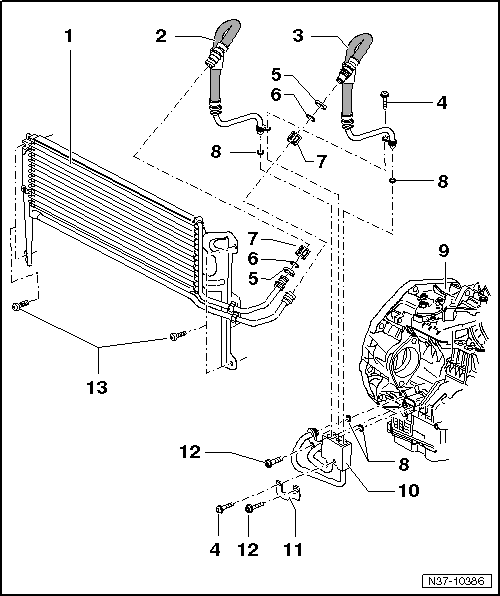

Fig 1: Identifying Assembly Overview: Transmission Fluid Cooler
GWWN37-10386Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transmission Fluid Cooler
  2. Supply Line
    • Attached to the transmission fluid cooler with a "quick release coupling".
  3. Return Line
    • Attached to the transmission fluid cooler with a "quick release coupling".
  4. Bolt
    • 9 Nm
  5. Seal
    • Square silicone ring.
    • Replace using the "quick release coupling seal kit" if there are leaks. Refer to QUICK RELEASE COUPLING SEAL KIT .
    • Install using transmission fluid.
  6. Seal
    • O-ring
    • Replace using the "quick release coupling seal kit" if there are leaks. Refer to QUICK RELEASE COUPLING SEAL KIT .
    • Install using transmission fluid.
  7. Clamp
    • Pay attention to the installed position. Refer to Figure.
    • Secures the "quick release coupling", must not be overstretched.
    • Replace the clamp if it is overstretched. Refer to QUICK RELEASE COUPLING SEAL KIT .
  8. Seal
    • Install using transmission fluid.
  9. Transmission
  10. Thermostat
  11. Bracket
  12. Bolt
    • 20 Nm
  13. Bolt
    • 5 Nm
