Car-Net Operating Control Unit (Address Word 75) Not Available In ODIS Self-Test Menu (TT 91-13-09)

Publication date: 2013-08-02
Reference number: TT 91-13-09

CAR-NET OPERATING CONTROL UNIT (ADDRESS WORD 75) NOT AVAILABLE IN ODIS SELF-TEST MENU

TECH TIPS

Reference Number(s): TT 91-13-09, Date of Issue: August 2, 2013

VOLKSWAGEN:	2014 CC, Eos, Passat, Tiguan
GROUP:	91 - Radio, Telephone, Navigation

Superceded Bulletin(s): TT 91-13-09, Date of Issue: July 19, 2013

SERVICE INFORMATION

2014 CC, Eos, Passat, Tiguan - Car-Net Operating Control Unit (Address Word 75) Not Available in ODIS Self-Test Menu

August 2, 2013: Update to Information.

On some 2014 Volkswagen vehicles equipped with CarNet, ODIS may not display 75 - Emergency call module & comm unit in the self-test menu. Users may also receive an error message when running OCU function tests. To correct these issues, a file within ODIS must be updated and a Hotfix needs to be installed.

NOTE: The file update needs to run one time for each tester. The Hotfix will need to be installed each time ODIS is restarted when servicing the 75 - Emergency call module & comm unit system.

This update applies to 2014 Volkswagen vehicles except Jetta and Beetle, when using ODIS version 1.2.1 or 2.0.0

To update the tester, follow the steps below:

Log in to ServiceNet to download the update package.

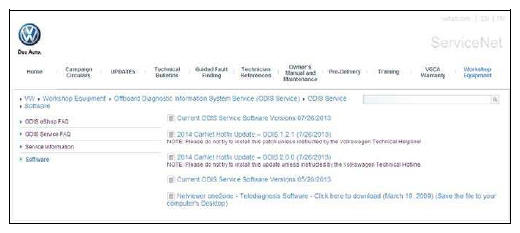

Go to VW/Workshop Equipment/Offboard Diagnostic Information System Service (ODIS Service)/ODIS Service/Software. Click the link for the ODIS software version being used.
Downloaded file will be Hotfix_ODIS_1.2.1.zip or Hotfix_ODIS_2.0.0.zip .
Extract the files to the tester desktop.
Extracted files will be in a folder with the same name as the original .zip file (Hotfix_ODIS_1.2.1 or Hotfix_ODIS_2.0.0 ).
Version 1.2.1 ONLY (Skip to step 5 if using version 2.0.0): If necessary, close the ODIS application.

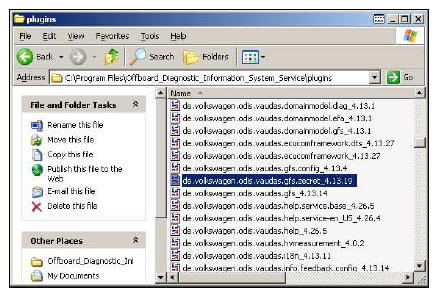

Copy the file de.volkswagen.odis.vaudas.gfs.zecret_4.13.19.jar from the HotfixVW11_2653_192200 folder (found inside the Hotfix_ODIS_1.2.1 folder) to the directory

C:\Program Files\Offboard_Diagnostic_Information_System_Service\Plugins.
Start the ODIS application. Before starting a diagnostic session, in the right toolbar, scroll down and expand the Data section. In the Hotfix section, click on the Download button.

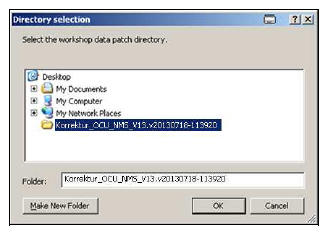

Navigate to the desktop and select the downloaded folder (folder name may vary from screenshot below). Click OK .

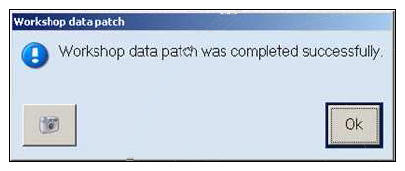

Click OK to close the confirmation dialog.
The update is complete.
